Product Details
In The Box

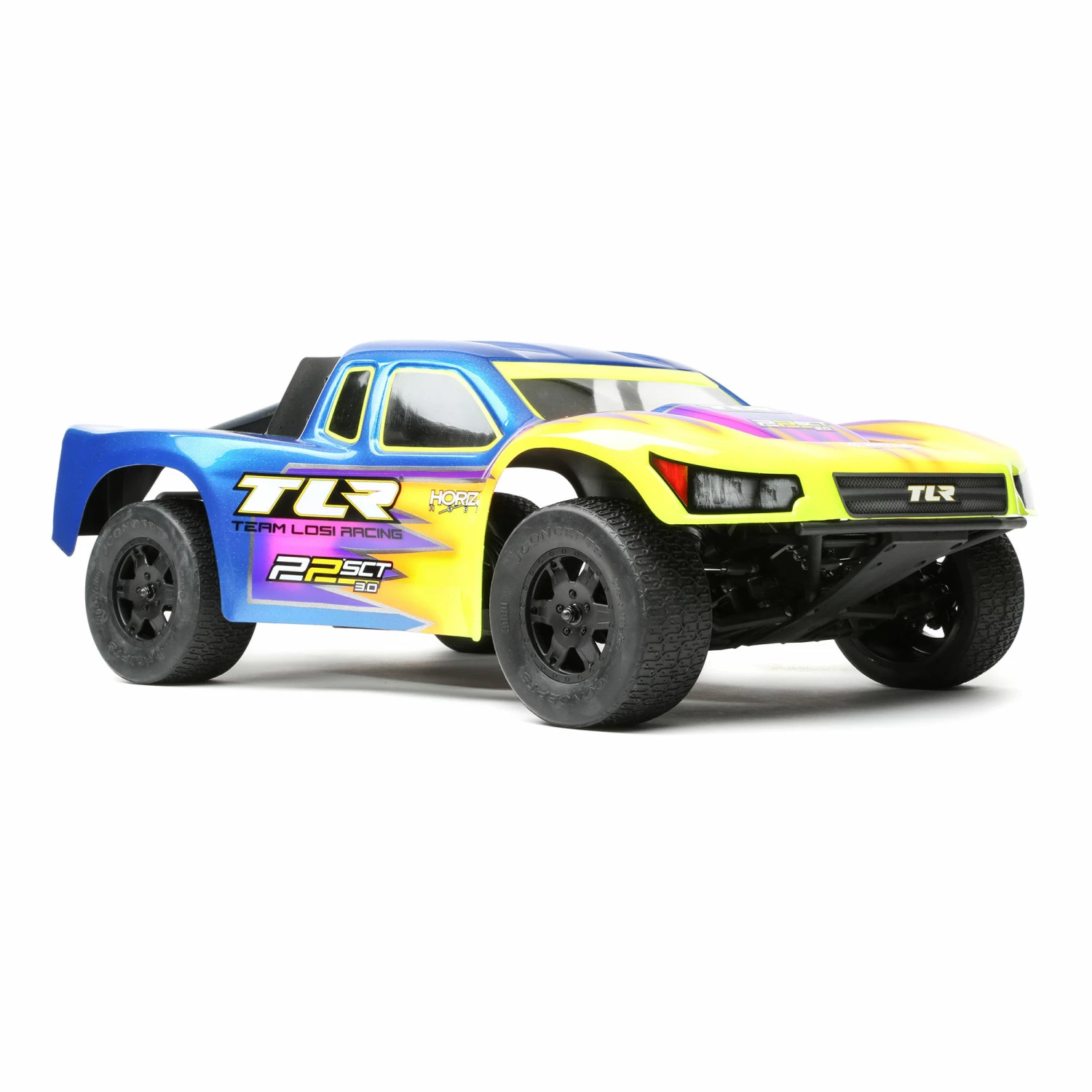

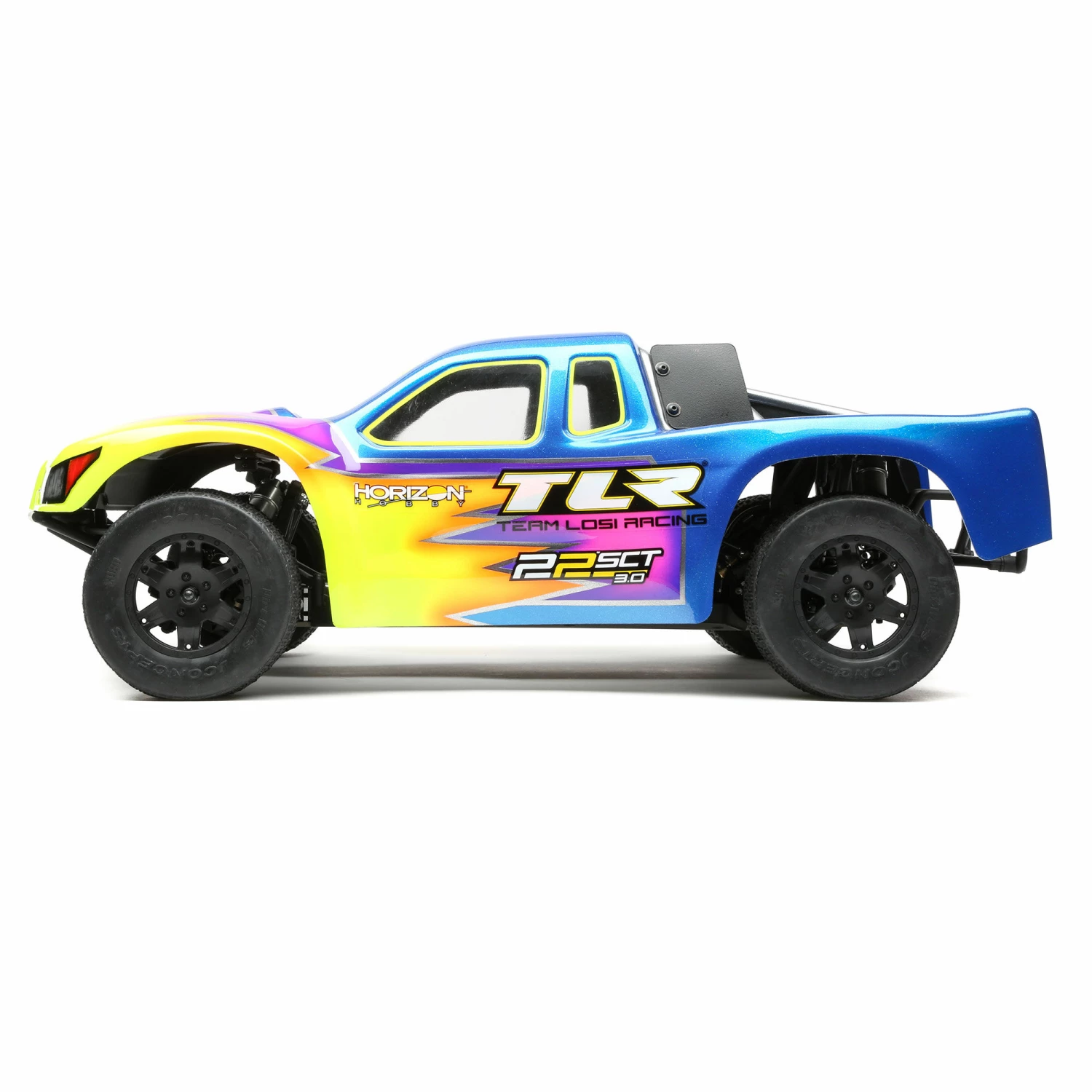

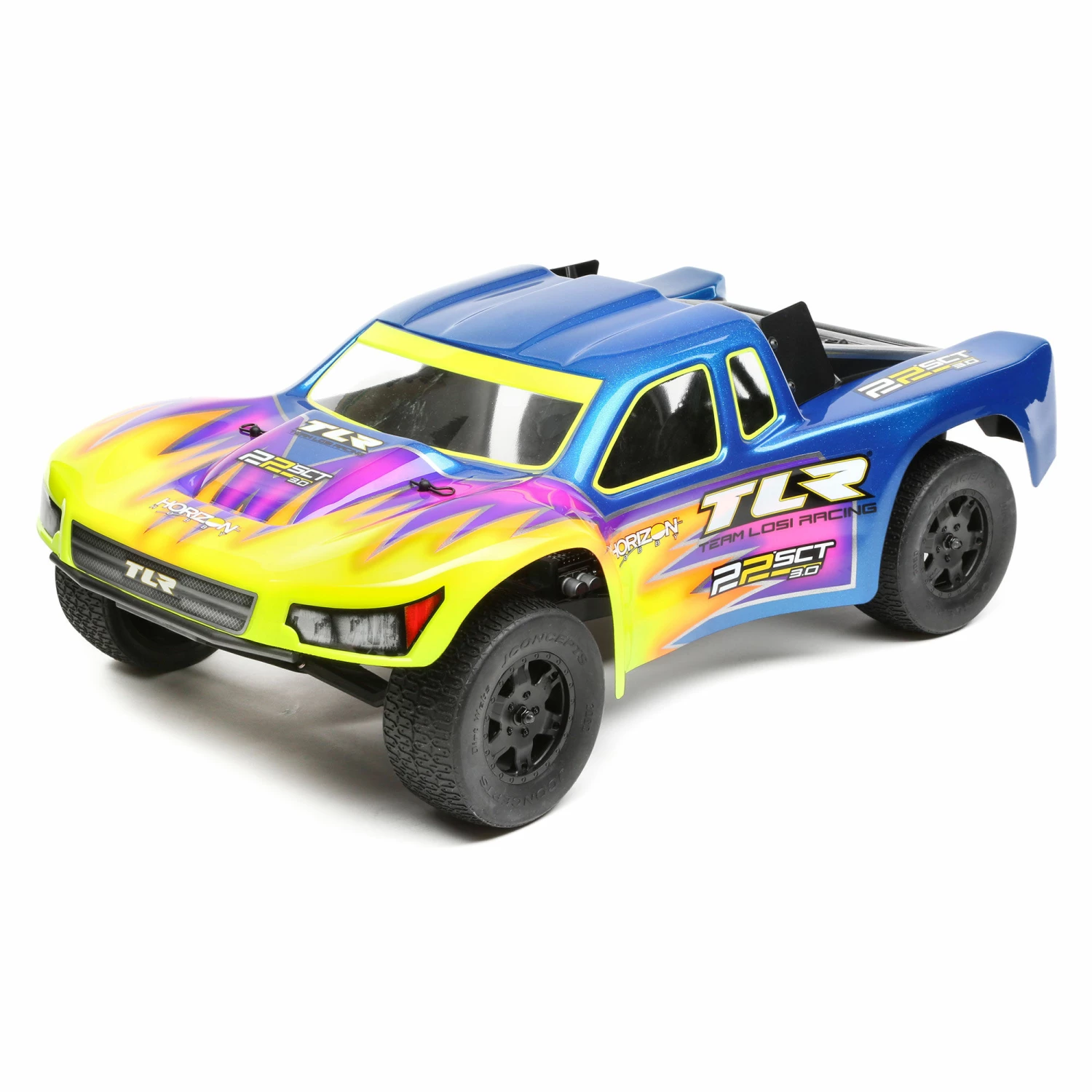

- (1) 22SCT 3.0 MM 2WD SCT Race Kit

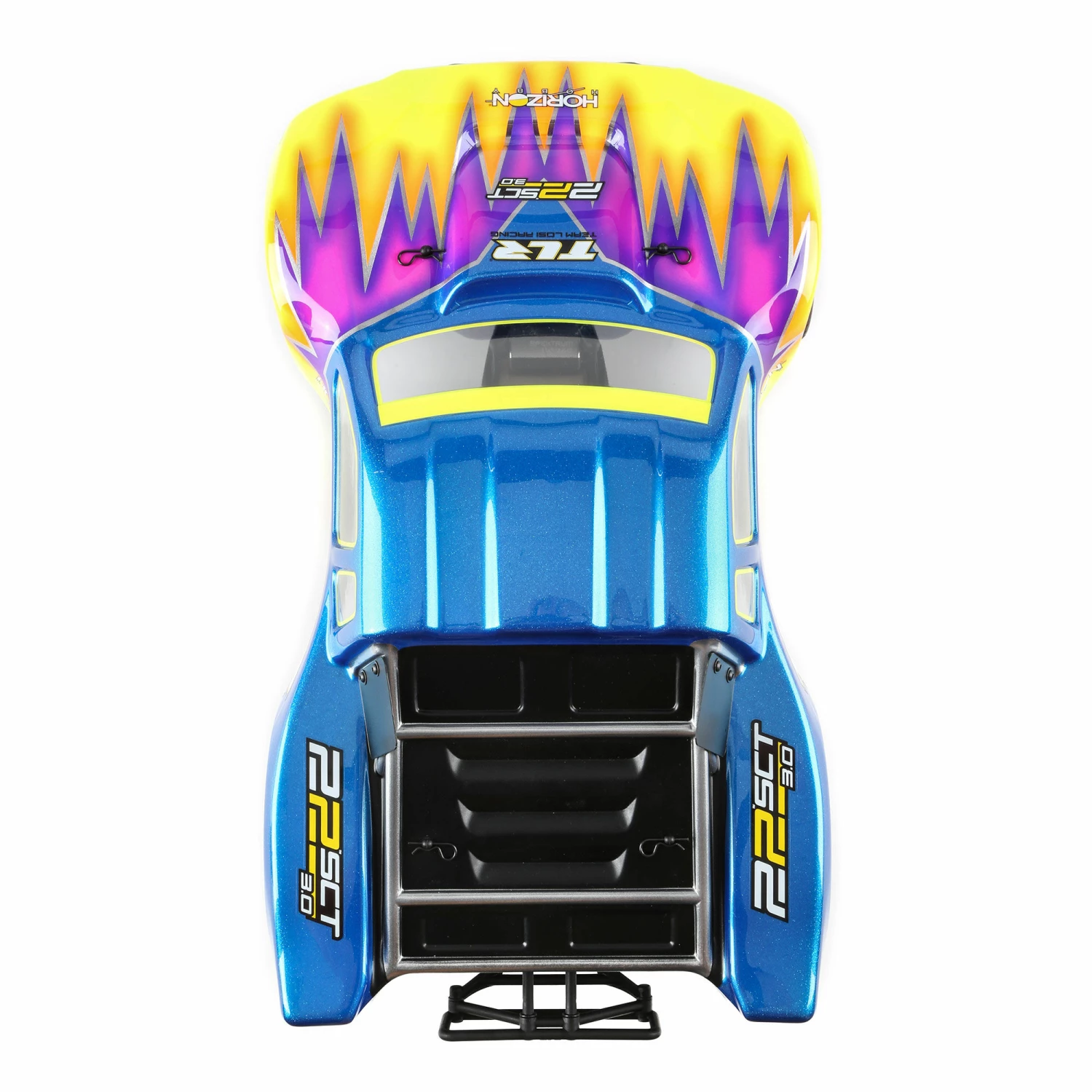

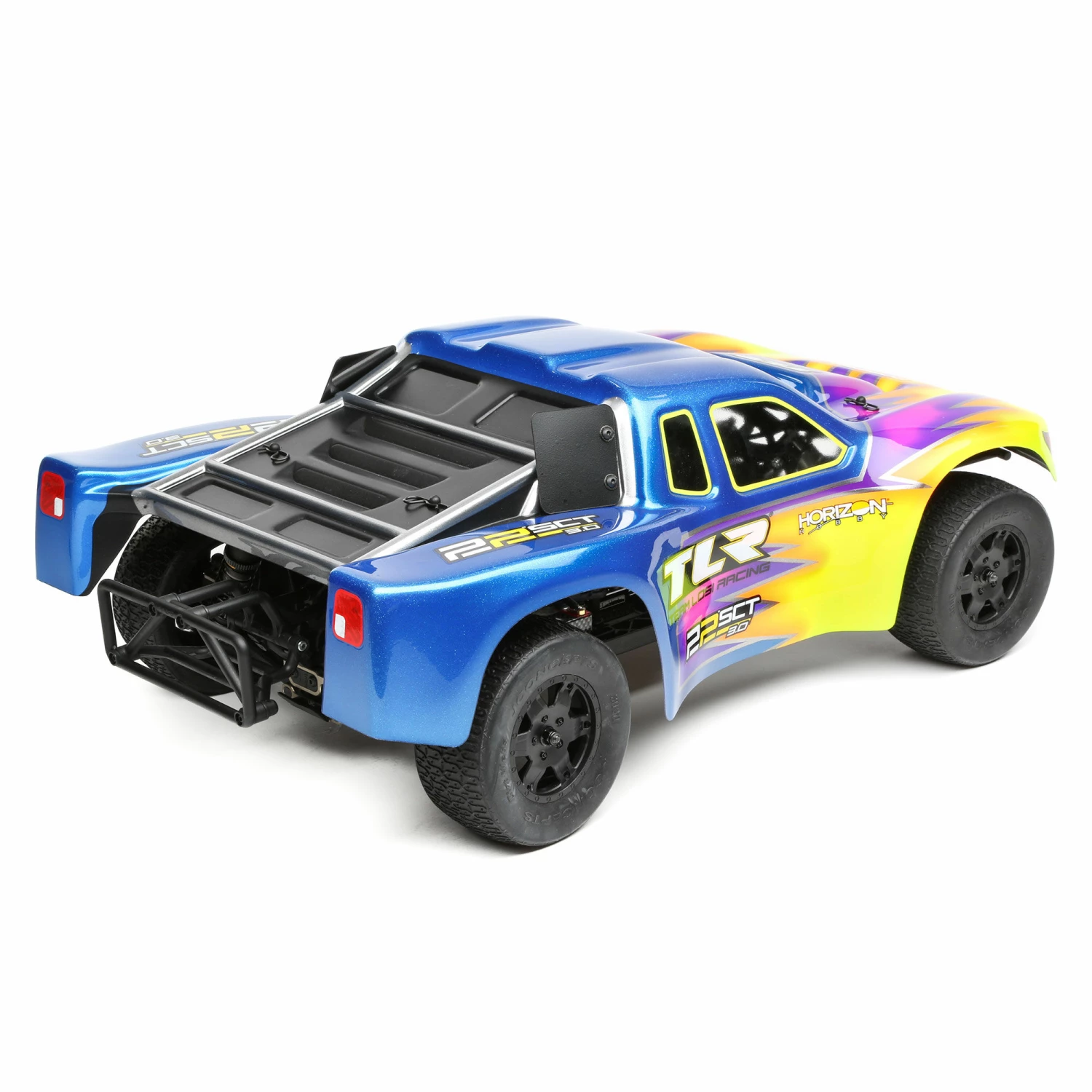

- (1) Clear Polycarbonate Body
- (4) SCT 2.2/3.0 Wheels, 12mm Hex, Black
- (1) Instruction Manual

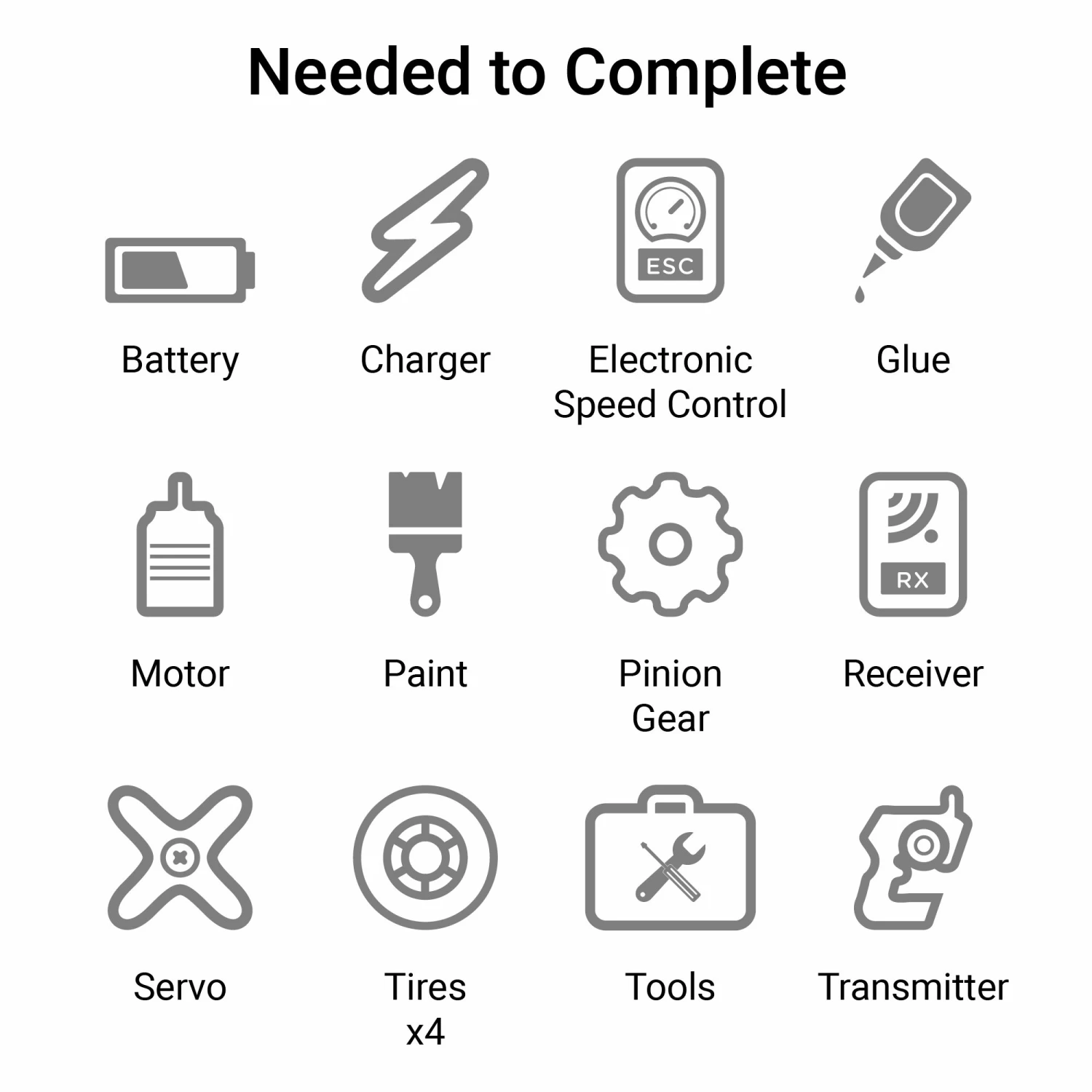

Needed to Complete
- (1) Transmitter and Receiver
- (1) Steering Servo
- (1) 2S βShortyβ LiPo Battery
- (1) LiPo Battery Charger
- (1) 48 Pitch Pinion Gear
- (1) Motor
- (1) ESC
- (1) Tire Glue
- (4) Tires
- Polycarbonate Paint
- Tools (Please reference the manual for more details)
Product Specifications
- Approximate Assembly Time: 5-7 Hours
- Ball Bearings: Full ball bearings
- Body: Clear, pre-cut, polycarbonate
- Brakes: Controlled via Motor/ESC
- Bushing Material: Metal

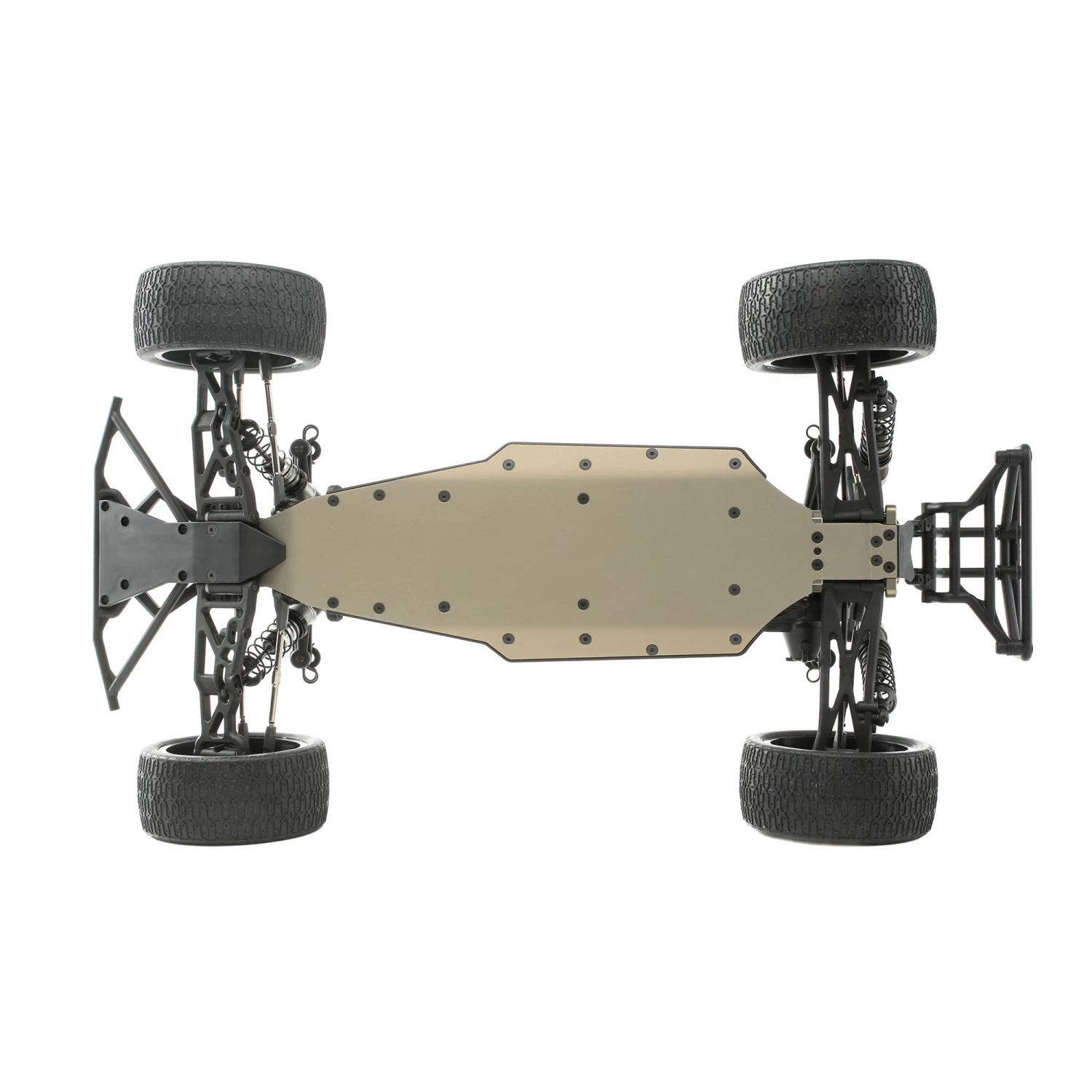

- Chassis: 2.5mm, 7075-T6 Aluminum
- Completion Level: Kit
- Differential: Ball Differential
- Drivetrain: 2WD
- Front Track: 11.63 in (295.5mm)
- Power Type: Electric
- Gear Pitch: 48-Pitch
- Ground Clearance: 1.98 in (50.3mm)
- Internal Gear Ratio: 2.43:1
- Motor Size: 540 (not included)
- Product Height: 7.28 in (184.9mm)
- Product Length: 21.15 in (537.15mm)
- Product Weight: Varies with Equipment Used
- Product Width: 9.72 in (246.9mm)
- Rear Track: 11.63 in (295.5mm)
- Receiver: Sold Separately
- Scale: 1/10
- Shock Type: 12mm Big Bore, Threaded Aluminum
- Speed Control: Sold Separately

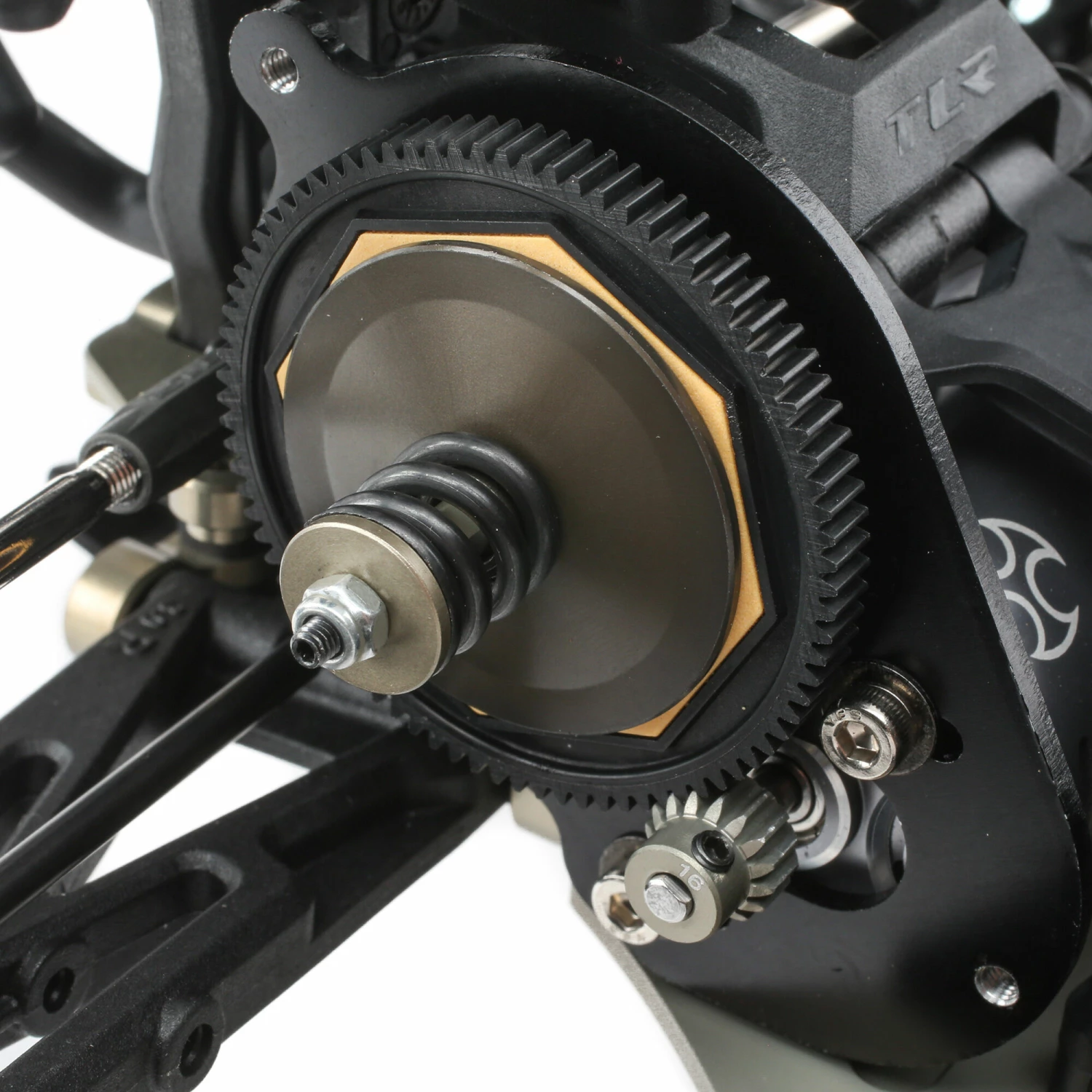

- Spur Gear: 84T

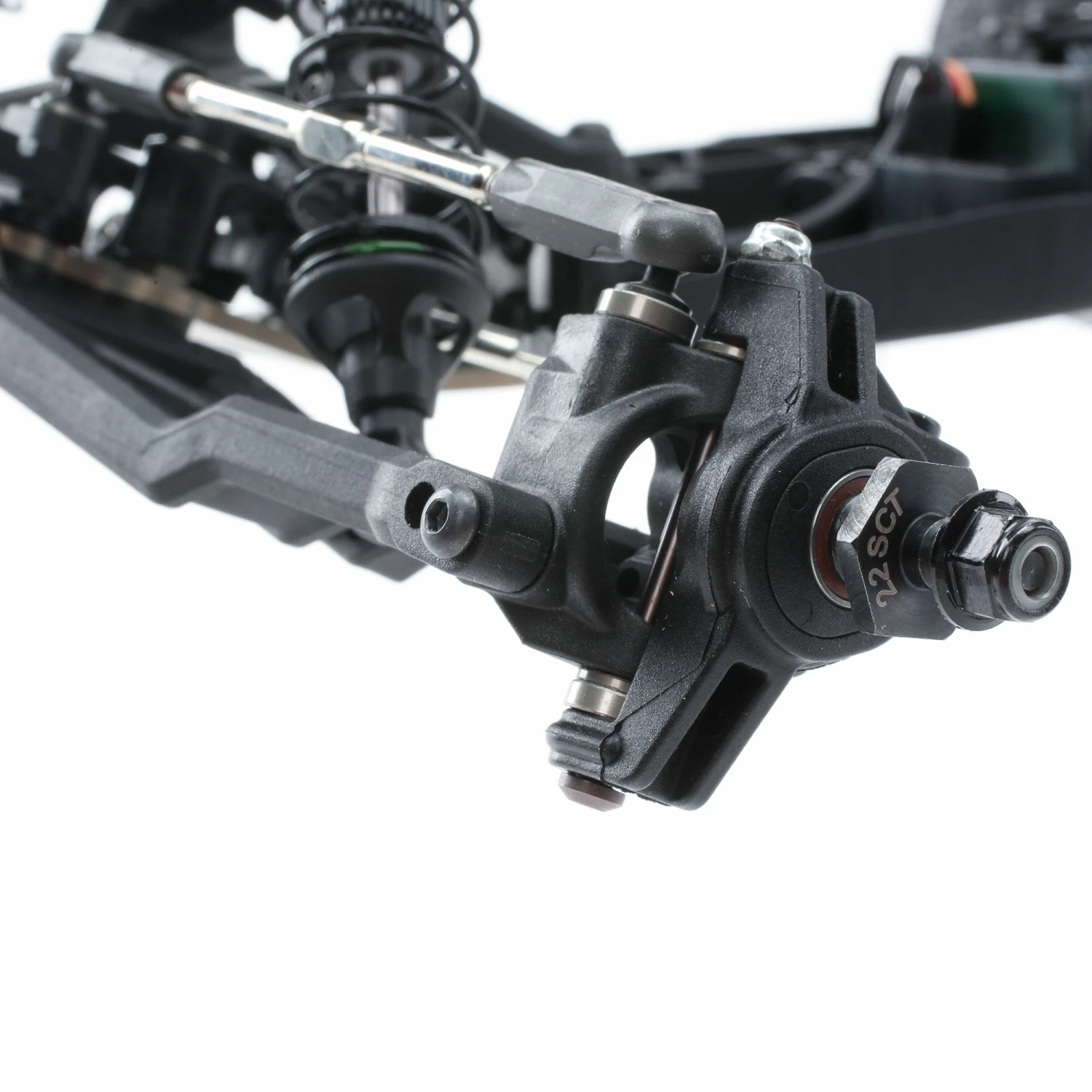

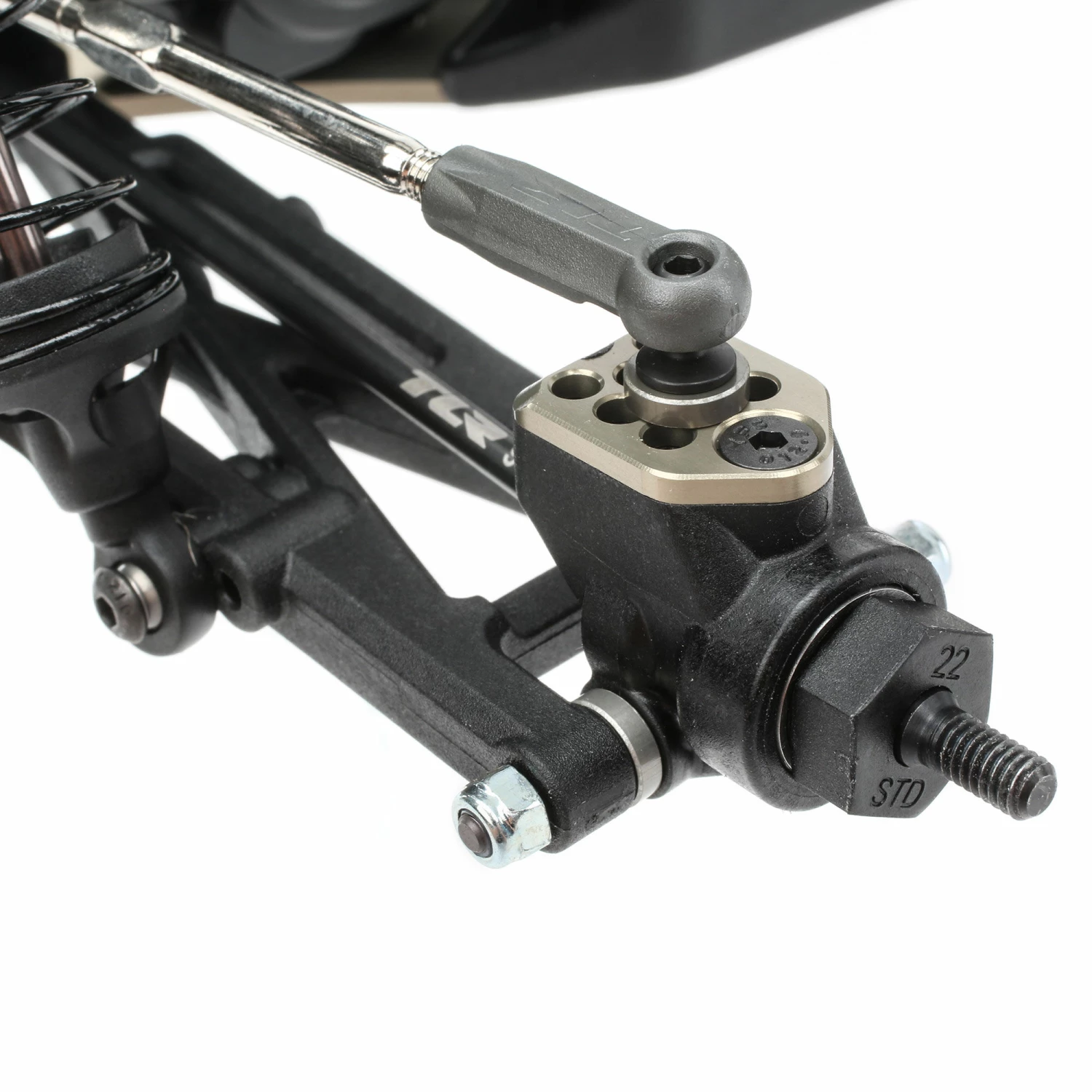

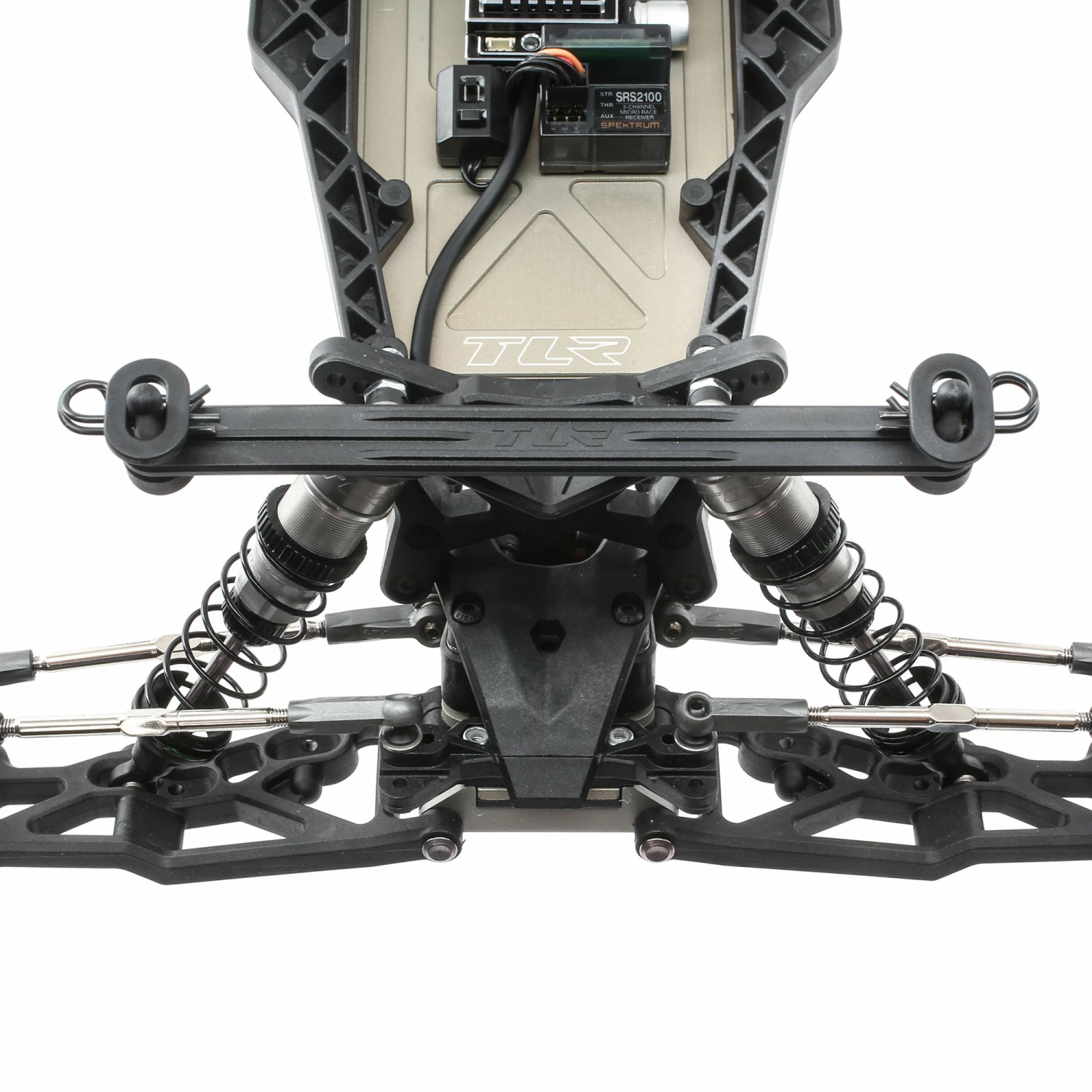

- Suspension: Lower A-Arm, Upper Adjustable Link
- Vehicle Type: Short Course Truck
- Wheelbase: 12.8 in (325mm)
- Wheel Type: TLR SCT Wheel
- Wheel Width: 1.63 in (41.5mm)
