Product Details

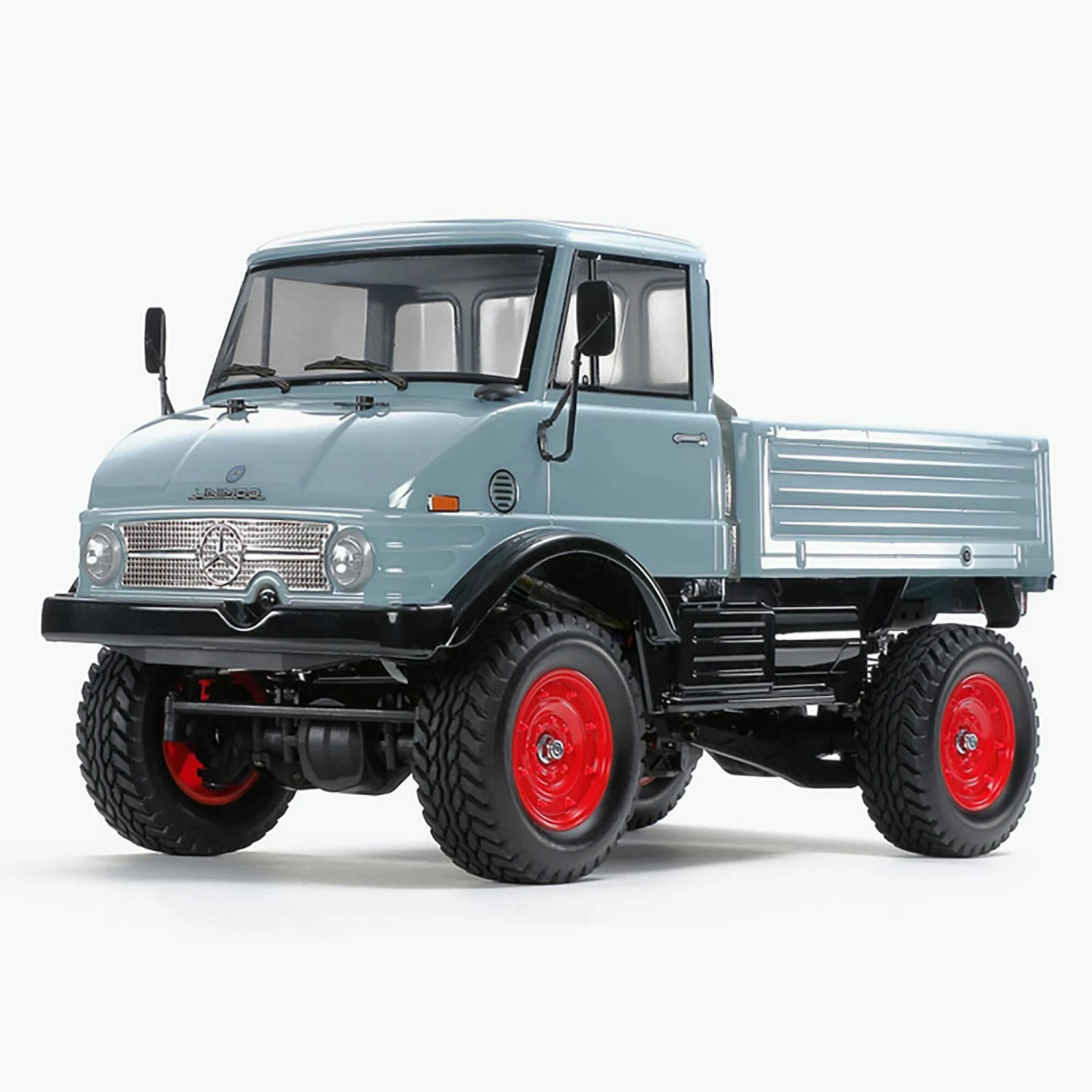

Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis’ ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with red wheels and grippy block pattern tires.
Key Features
- Pre-Painted Polycarbonate body (Tamiya PS-32 Corsa Gray)
- Separate parts included for side mirrors and fuel tank, plus a metal-plated front grille and emblem
- Includes block pattern tires, and red ABS wheels with a depiction of bead lock designs
- Includes 540-brushed type motor
- LED lights included
- Includes NEW TBLE-04S ESC
In The Box
- (1) MERCEDES-BENZ UNIMOG 406 Kit
Needed to Complete
- 2-channel radio, steering servo, 7.2-7.4volt battery pack and compatible charger
Product Specifications
- Battery: Sold Separately
- Charger: Sold Separately
- Completion Level: Kit
- Drivetrain: 4WD
- Power Type: Electric
- Motor Type: Brushed
- Product Height: 8.8″ (224 mm)
- Product Length: 15.1″ (384 mm)
- Product Width: 7.7″ (196 mm)
- Radio: Sold Separately
- Scale: 1/10
- Servos: Sold Separately
- Speed Control: Included
- Vehicle Type: Rock Crawler
- Wheelbase: 9.51″ (242 mm)
