Product Details
In The Box

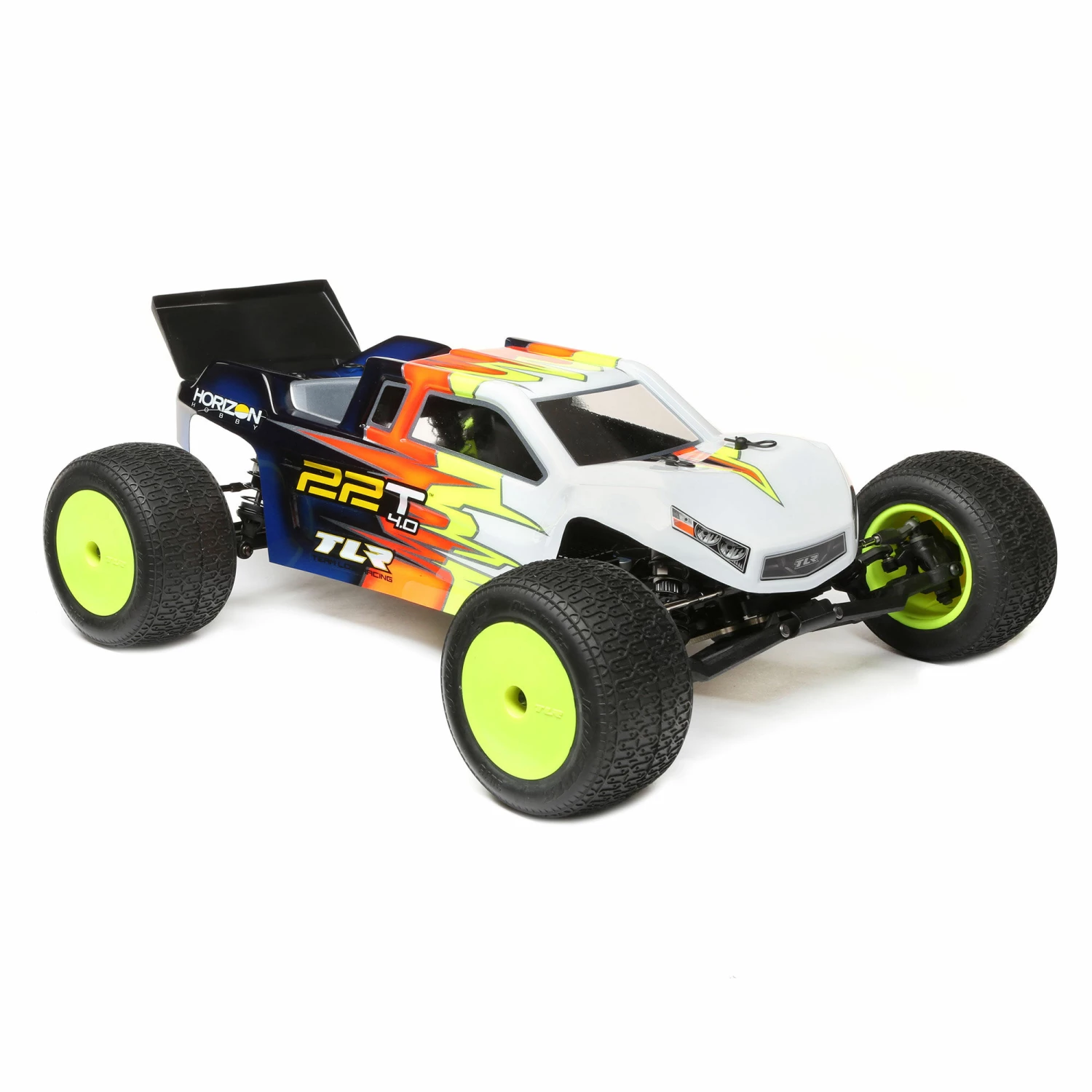

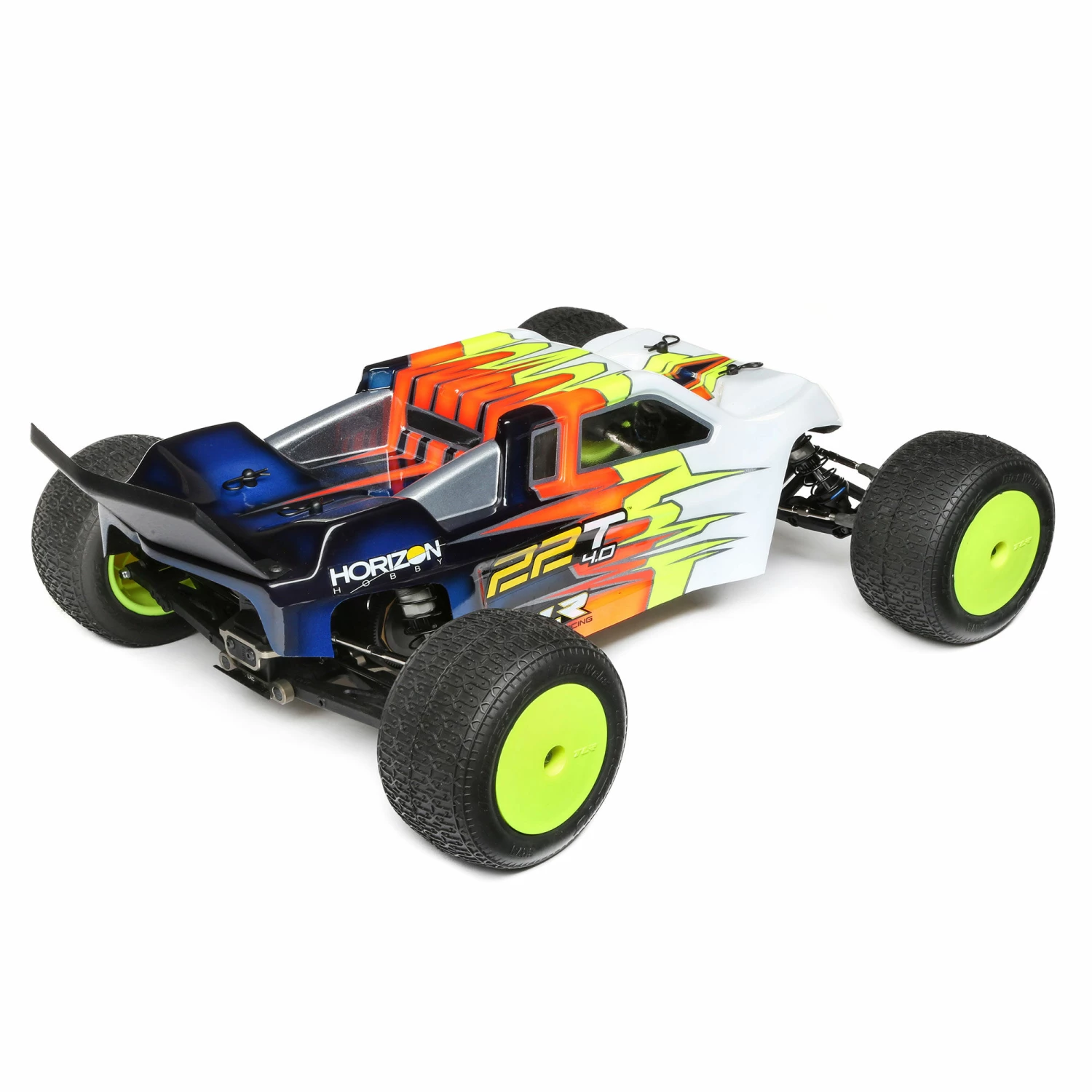

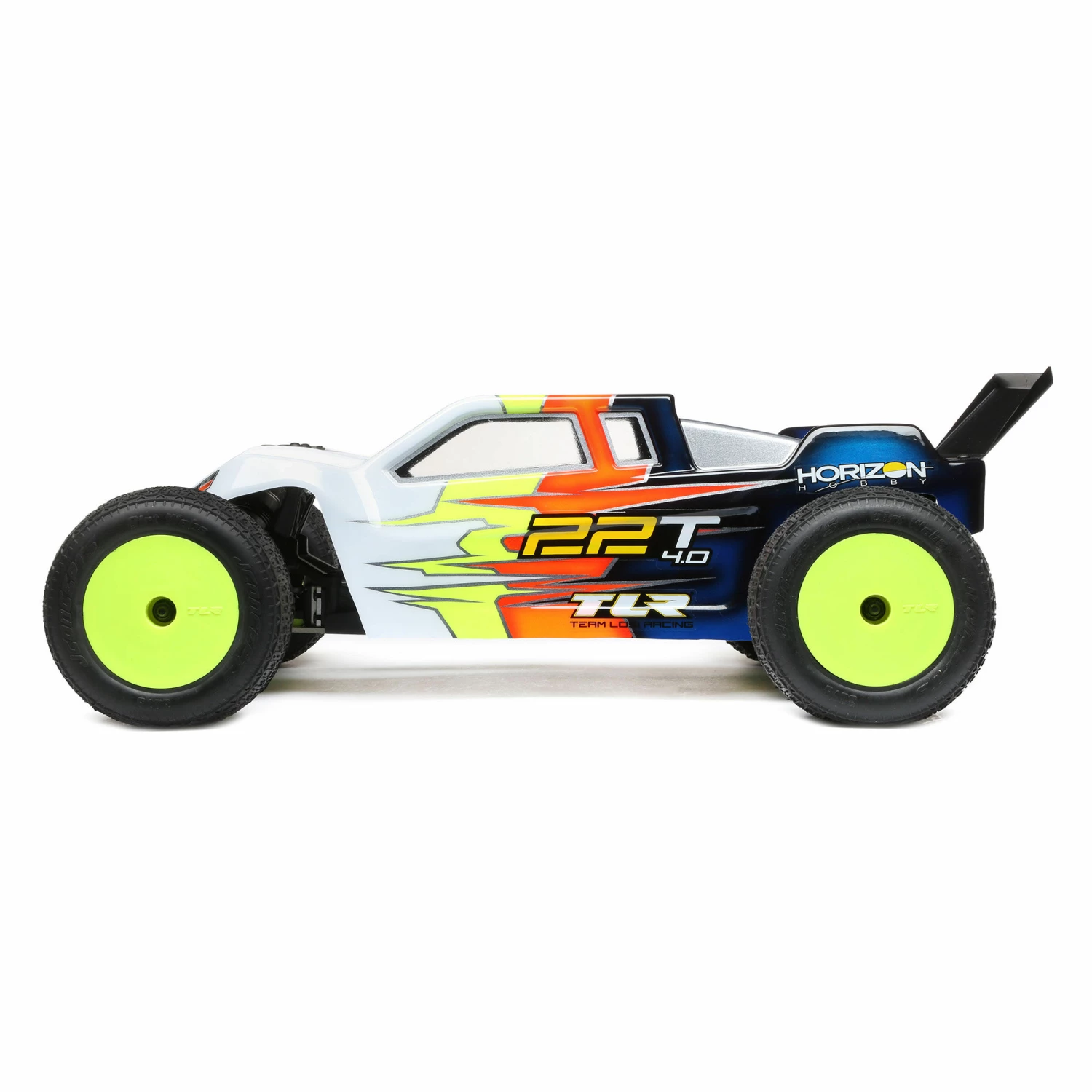

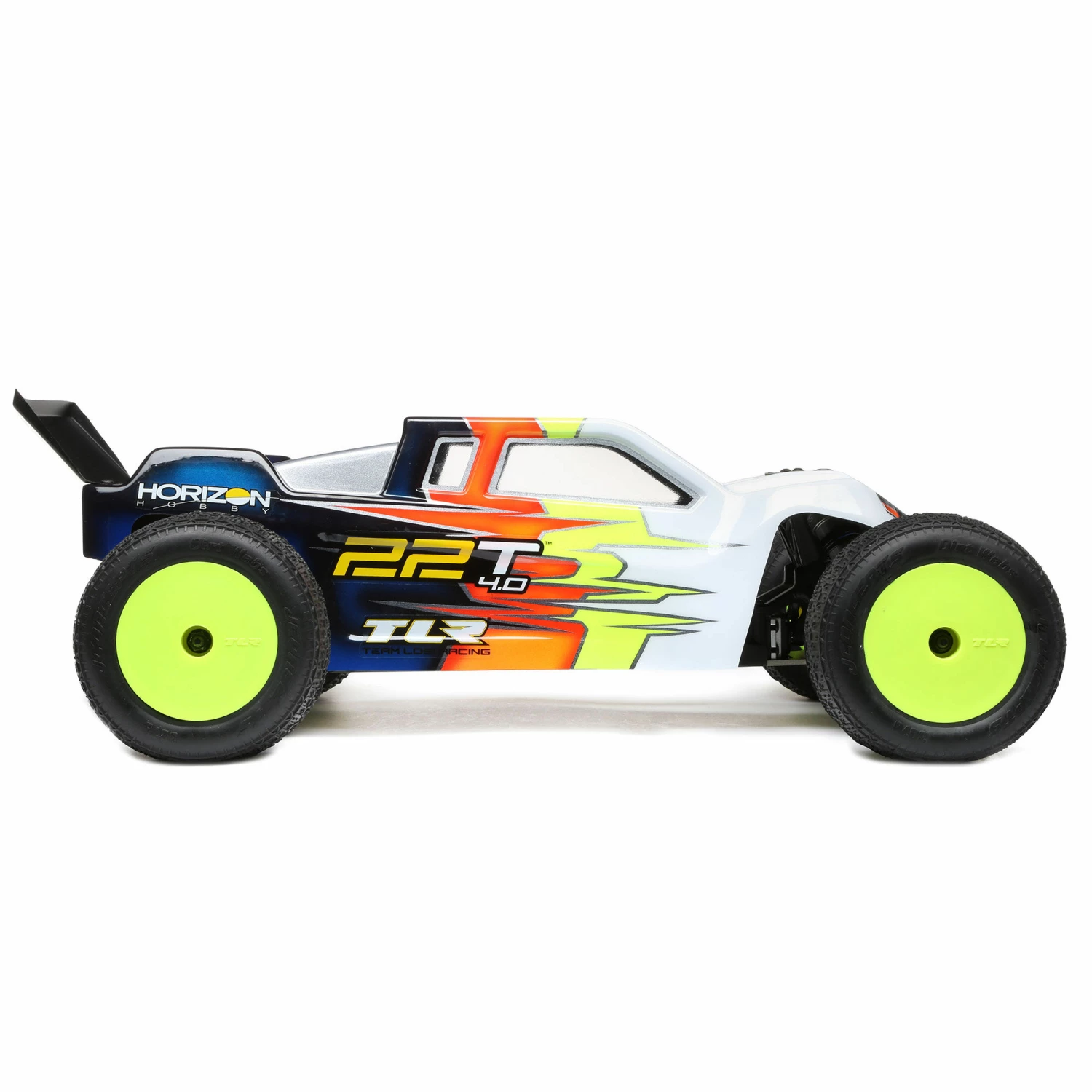

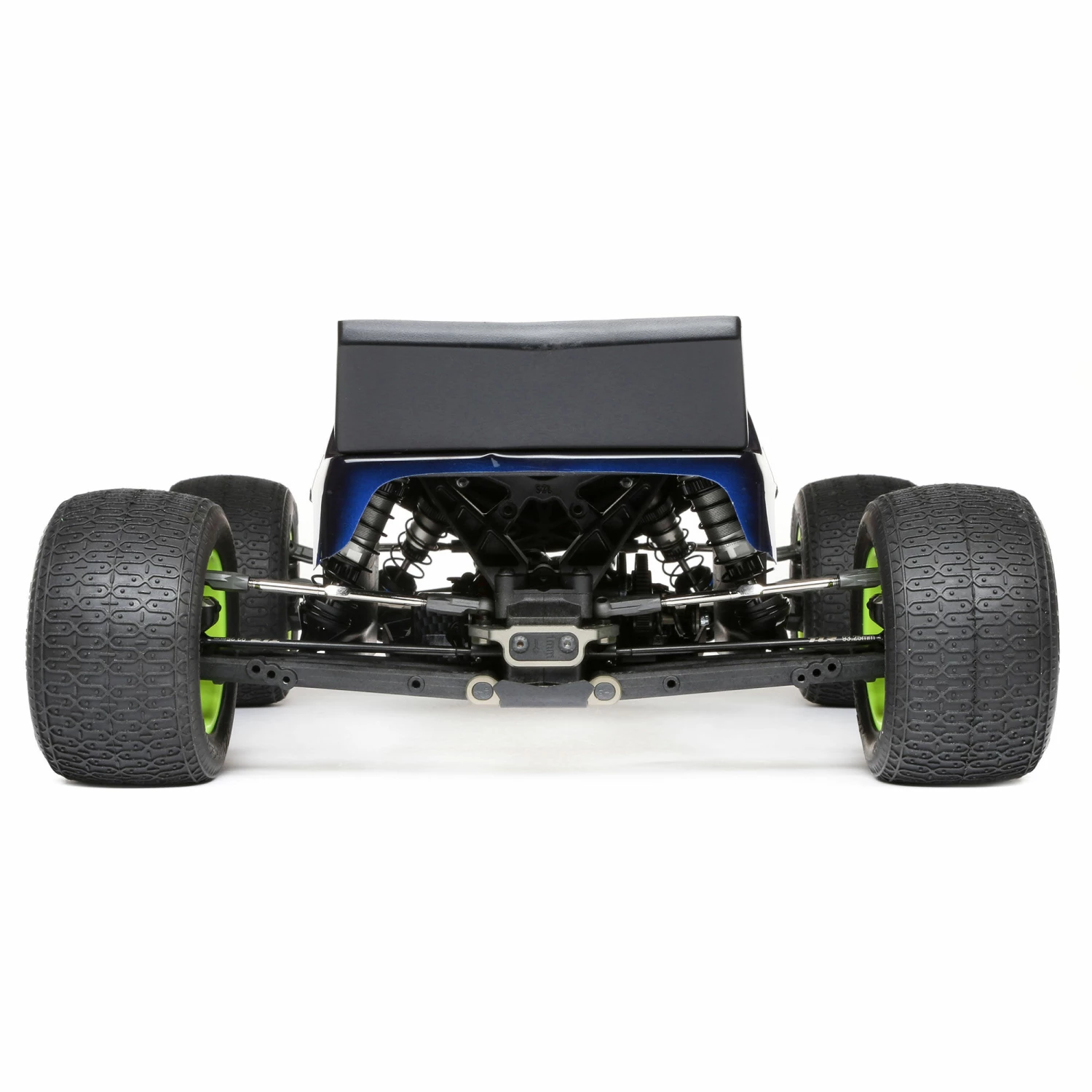

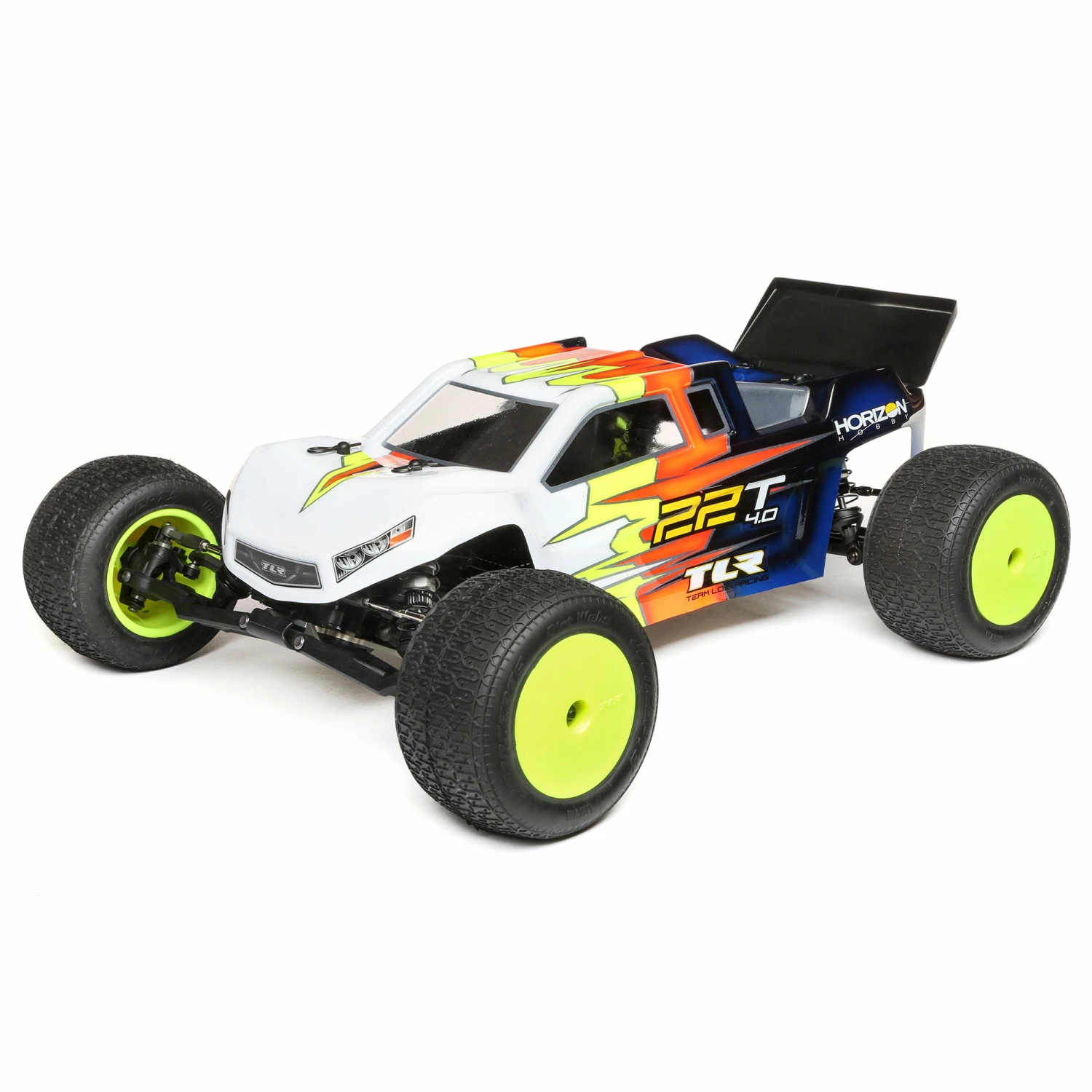

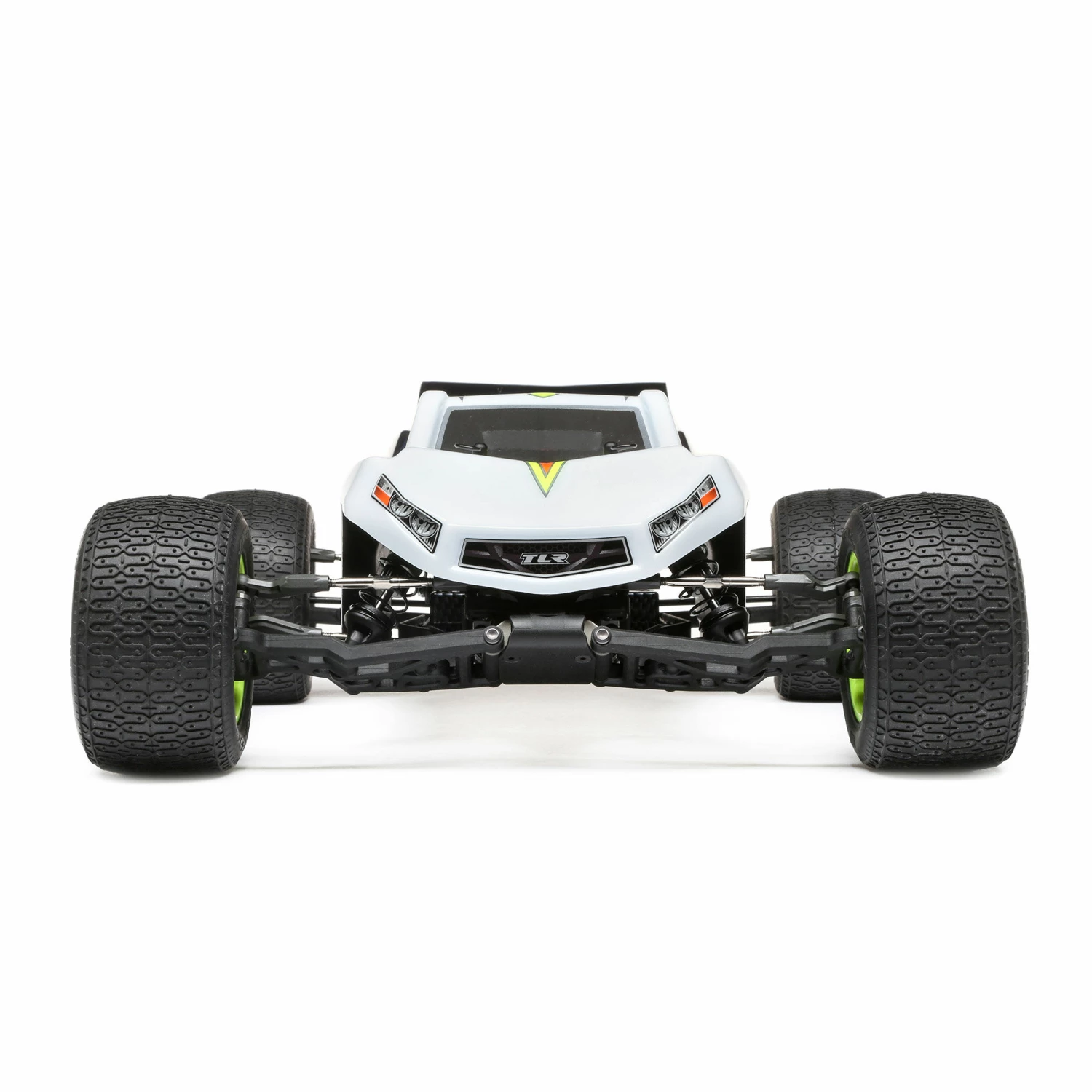

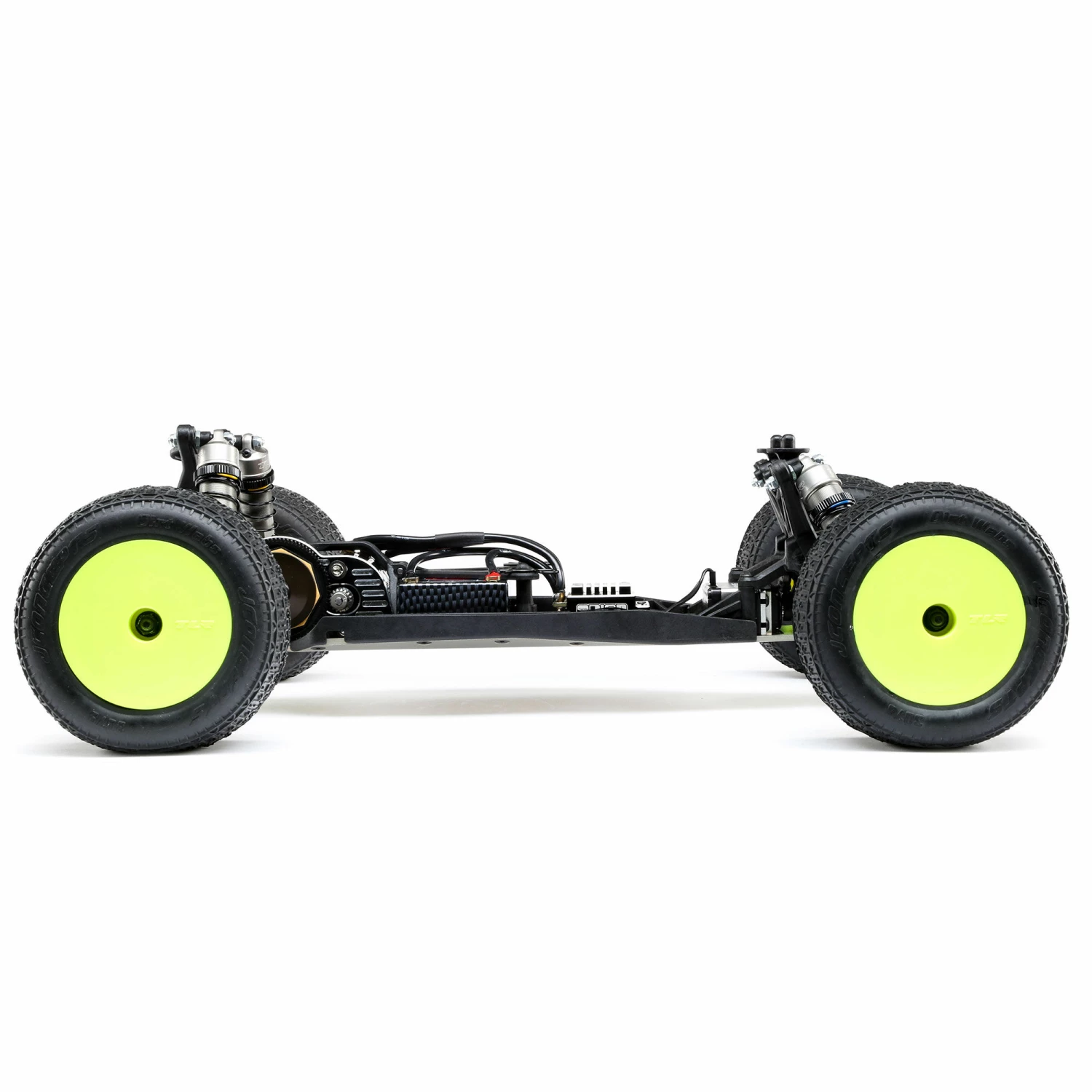

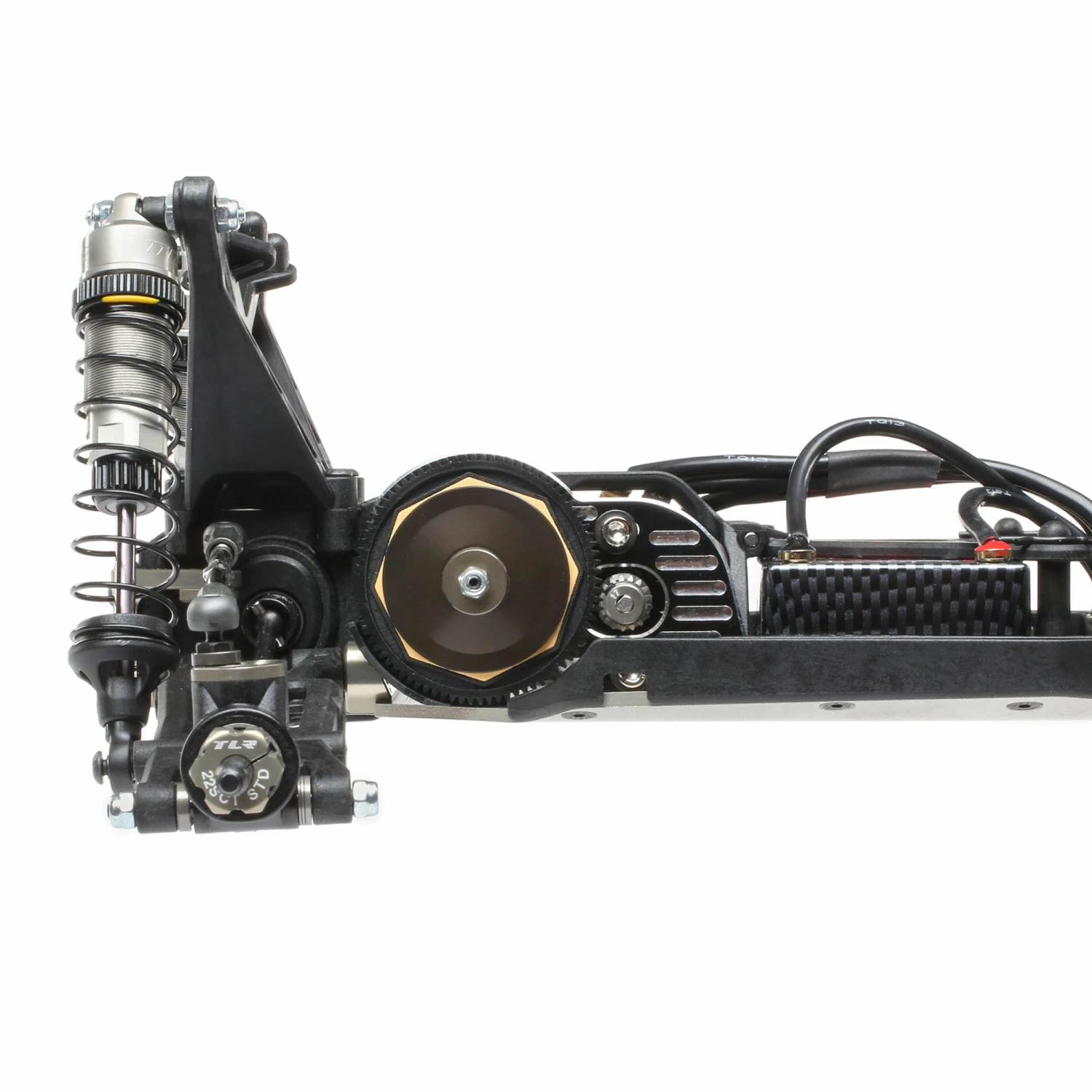

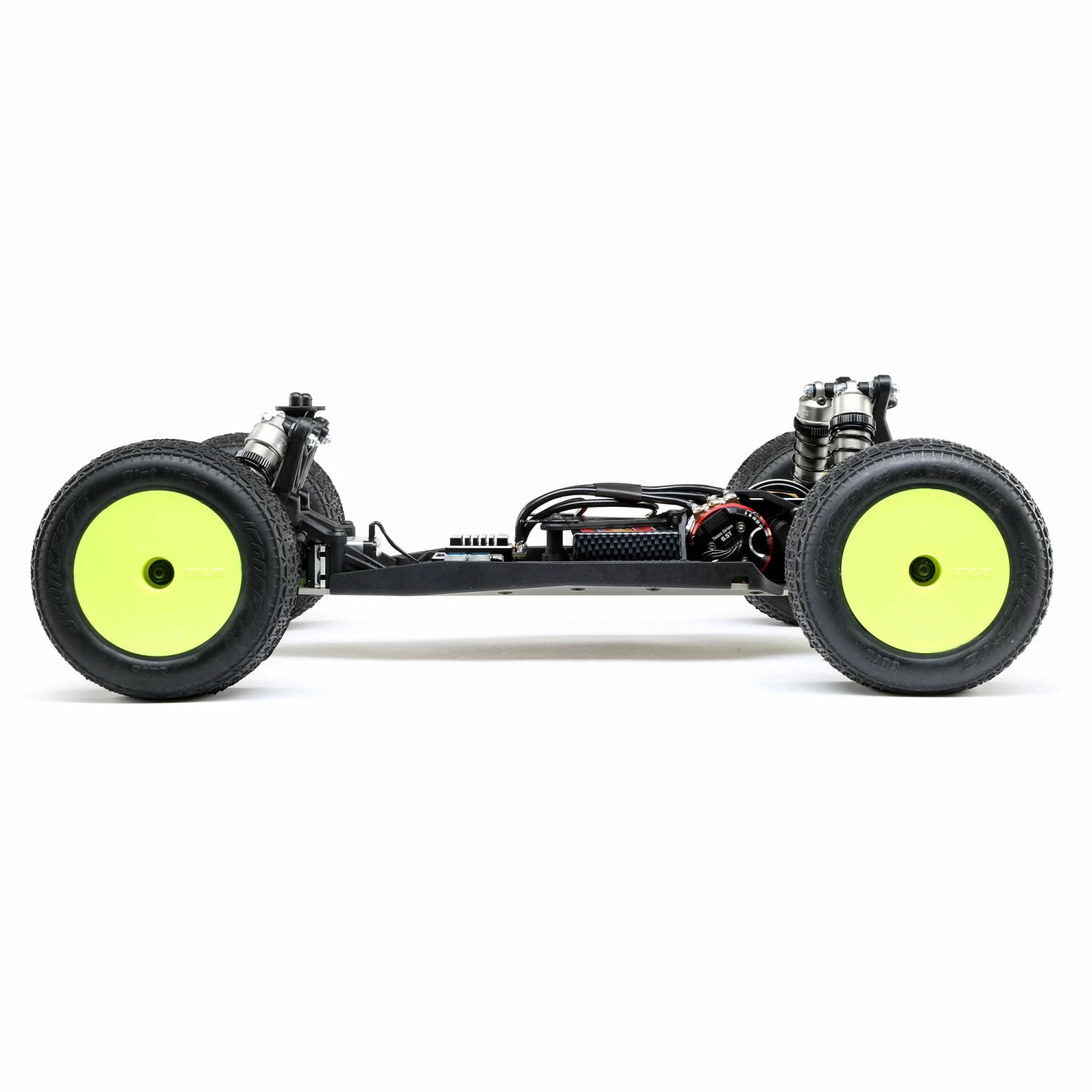

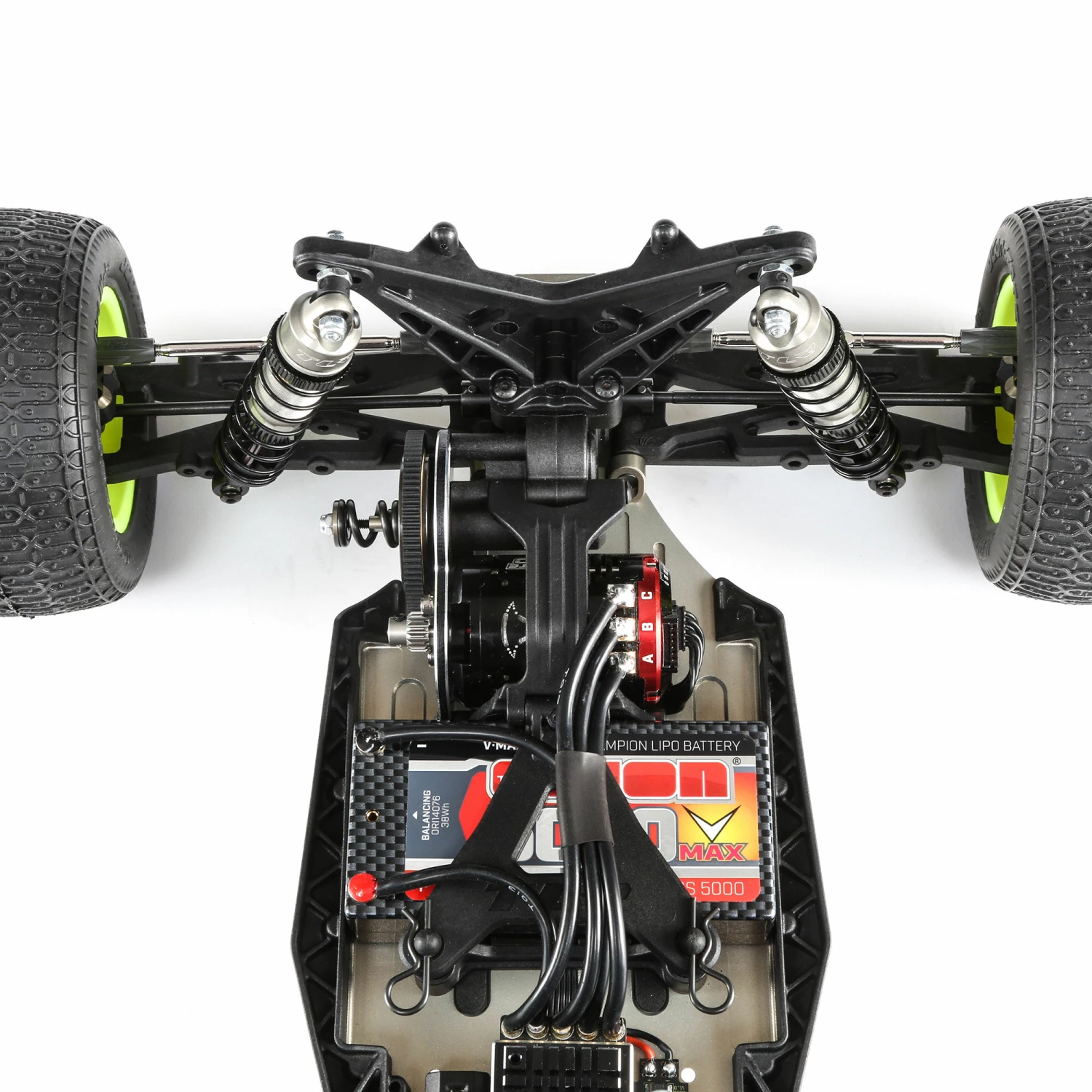

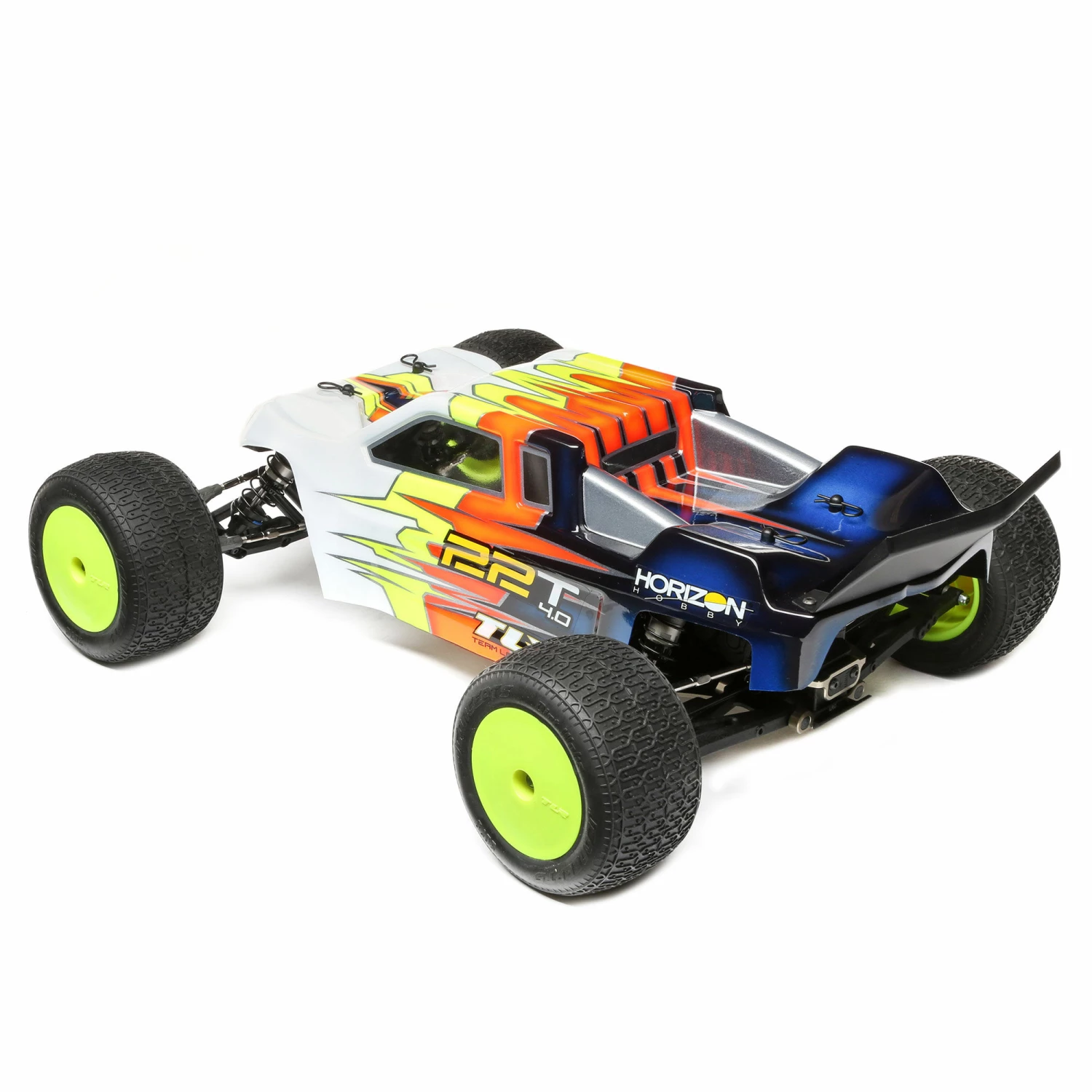

- (1) TLR® 22T 4.0 2WD Stadium Truck Kit
- (1) Clear Body
- (1) 32.5 Weight Shock Oil
- (4) Yellow Wheels
- (1) 82T 48Pitch Spur Gear
- (1) User Manual

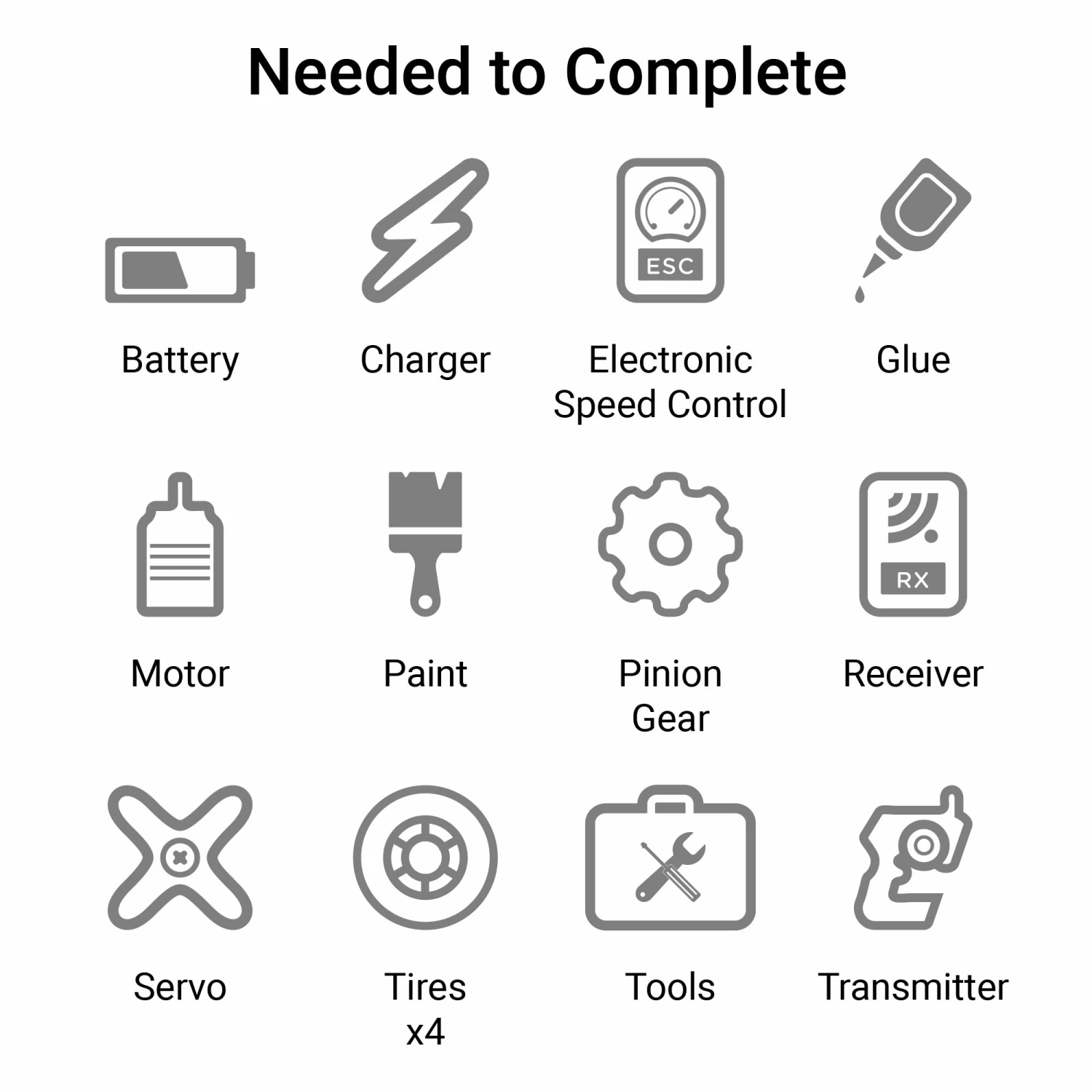

Needed to Complete
- (1) Transmitter and Receiver

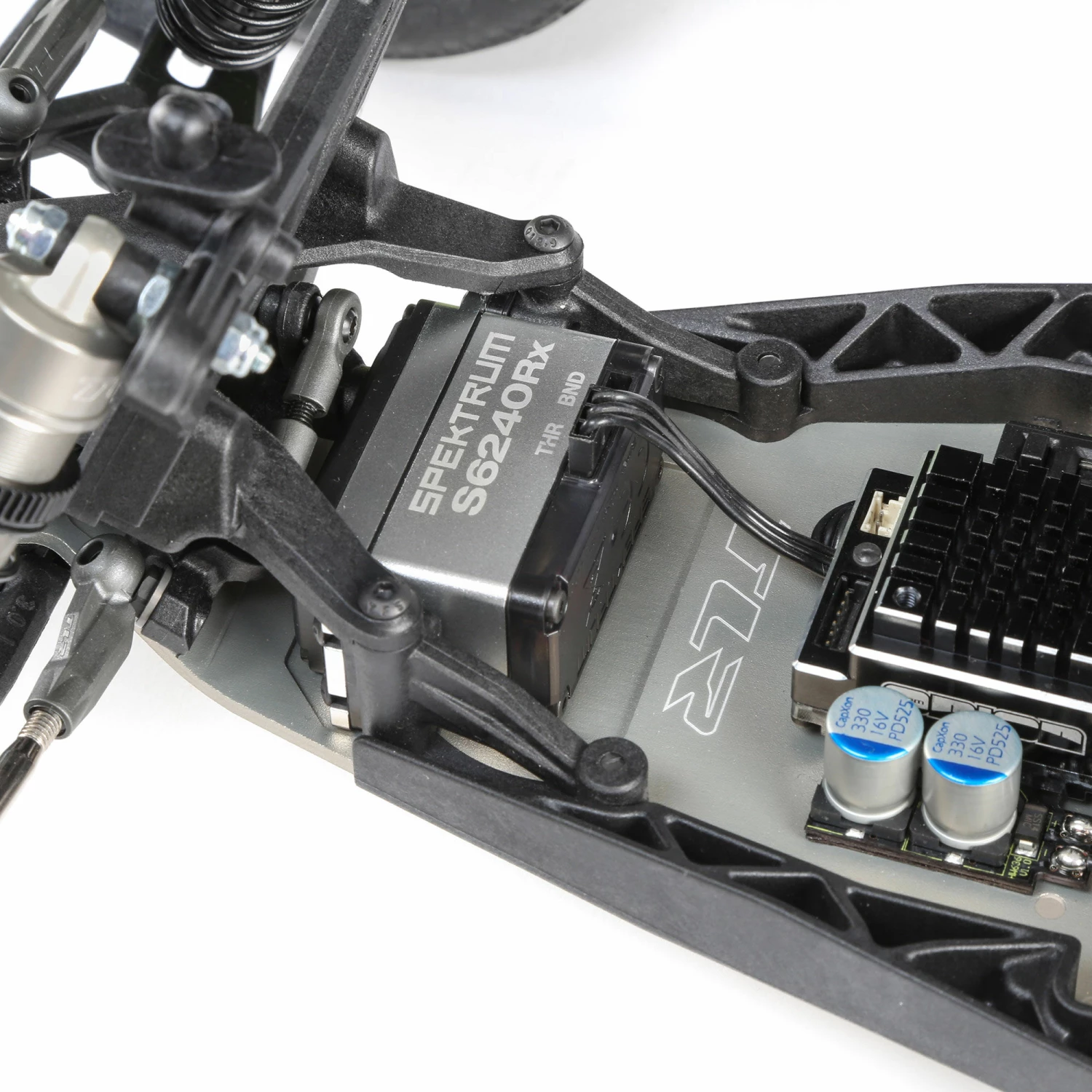

- (1) Steering Servo
- (1) 2S “Shorty” LiPo Battery
- (1) LiPo Battery Charger
- (1) 48 Pitch Pinion Gear
- (1) Motor
- (1) ESC
- (1) Tire Glue
- (4) Tires
- Polycarbonate Paint
Product Specifications
- Approximate Assembly Time: 3-5 Hours
- Ball Bearings: Full Rubber Sealed
- Battery: Sold Separately

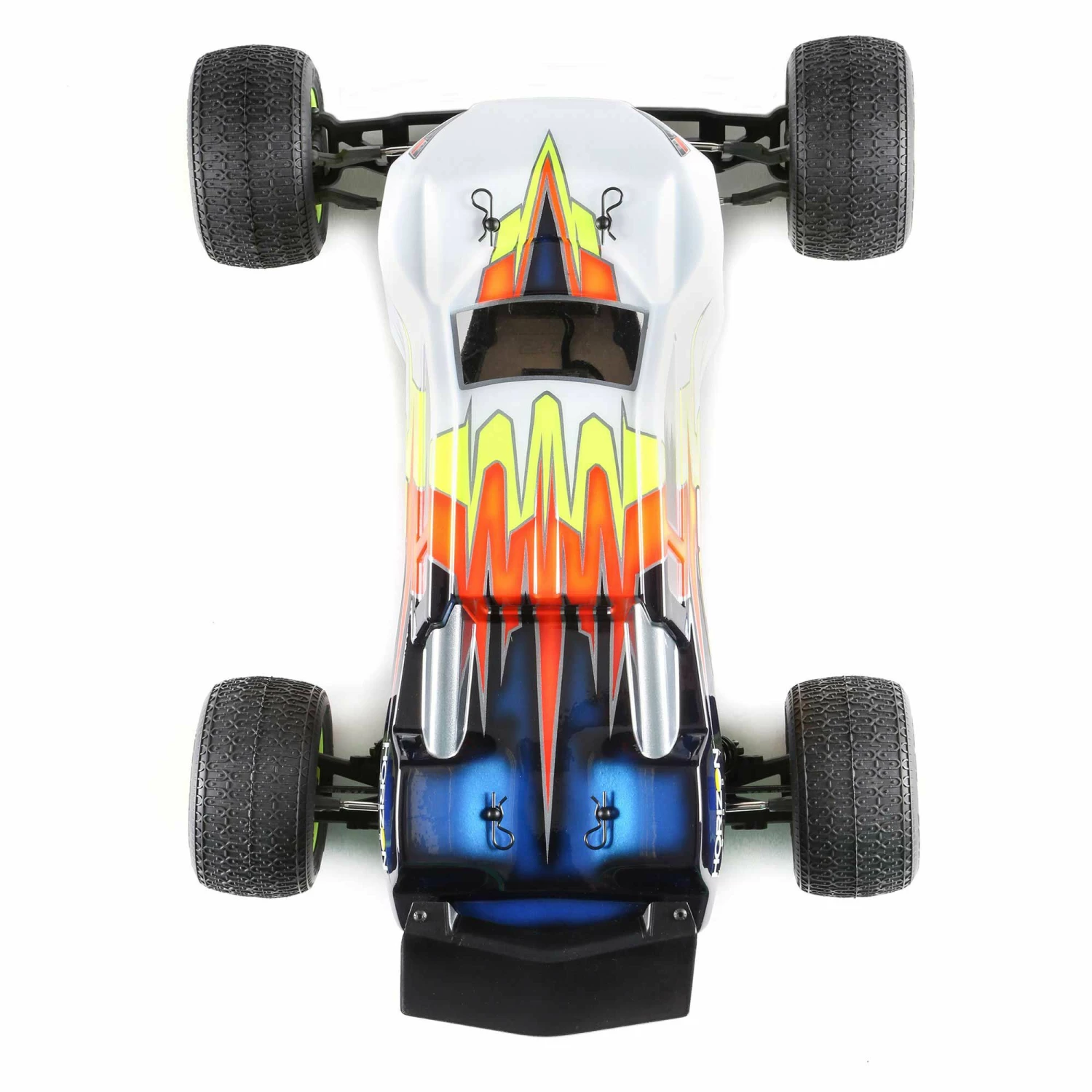

- Body: 22T 4.0, Clear Polycarbonate
- Brakes: Controlled via Motor/ESC
- Charger: Sold Separately

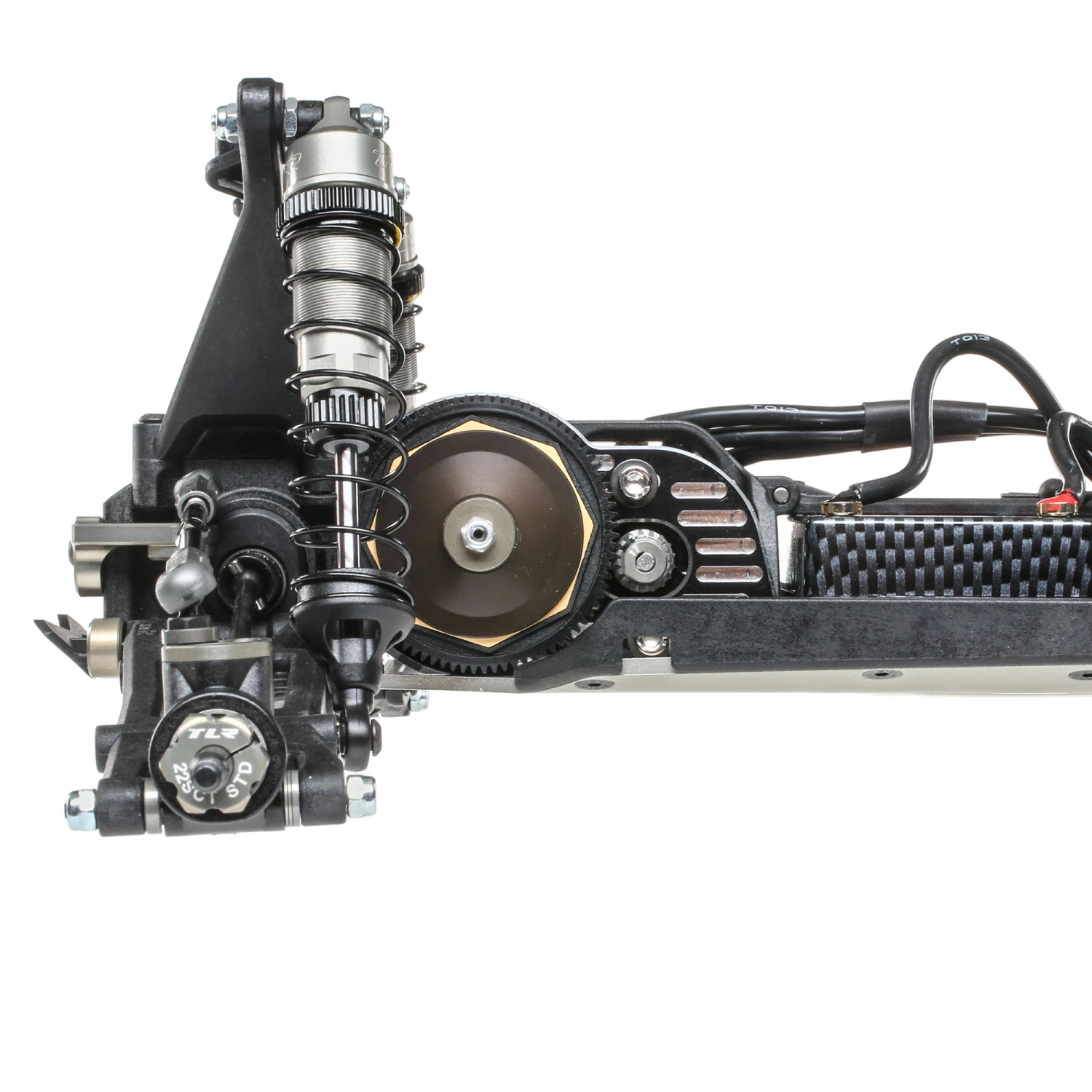

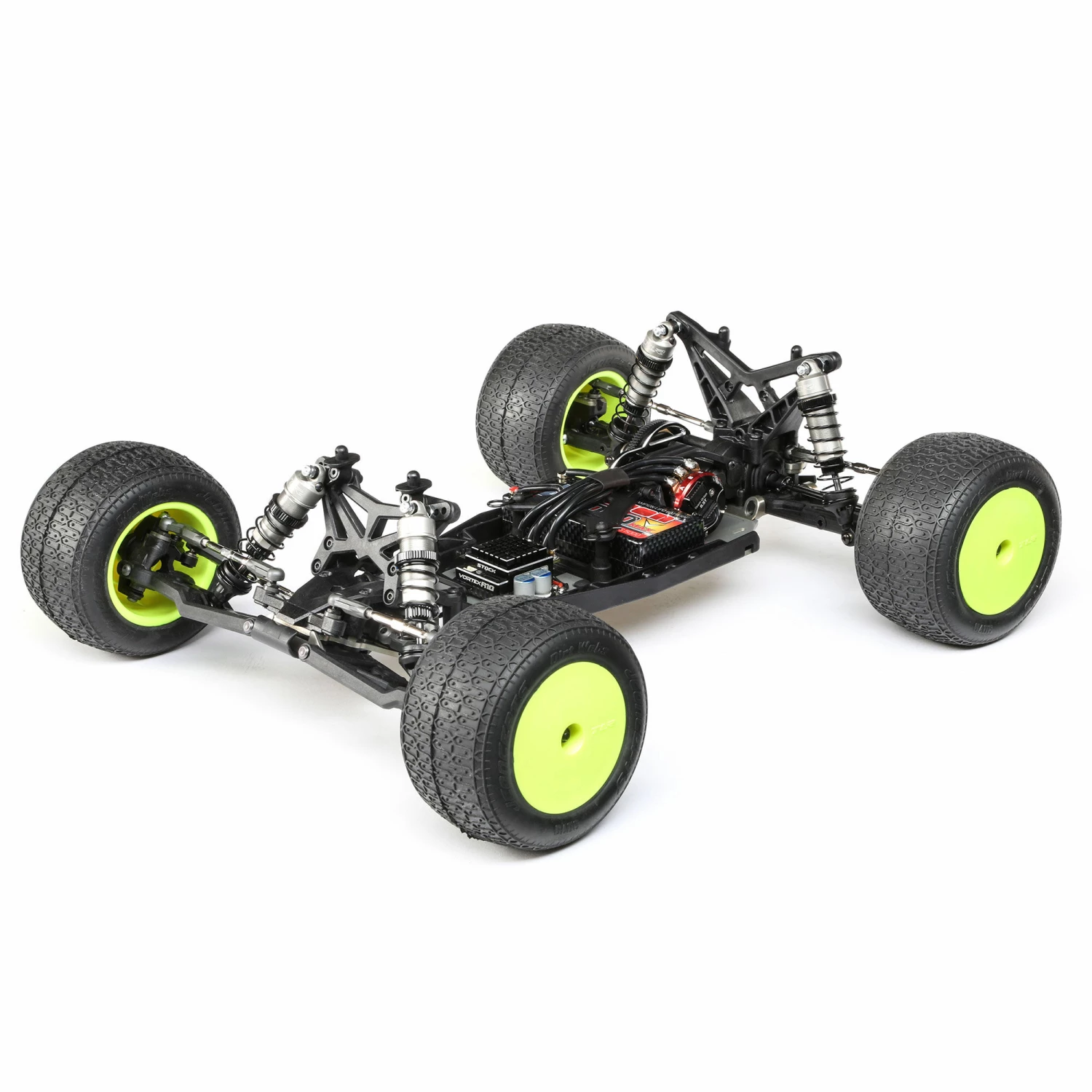

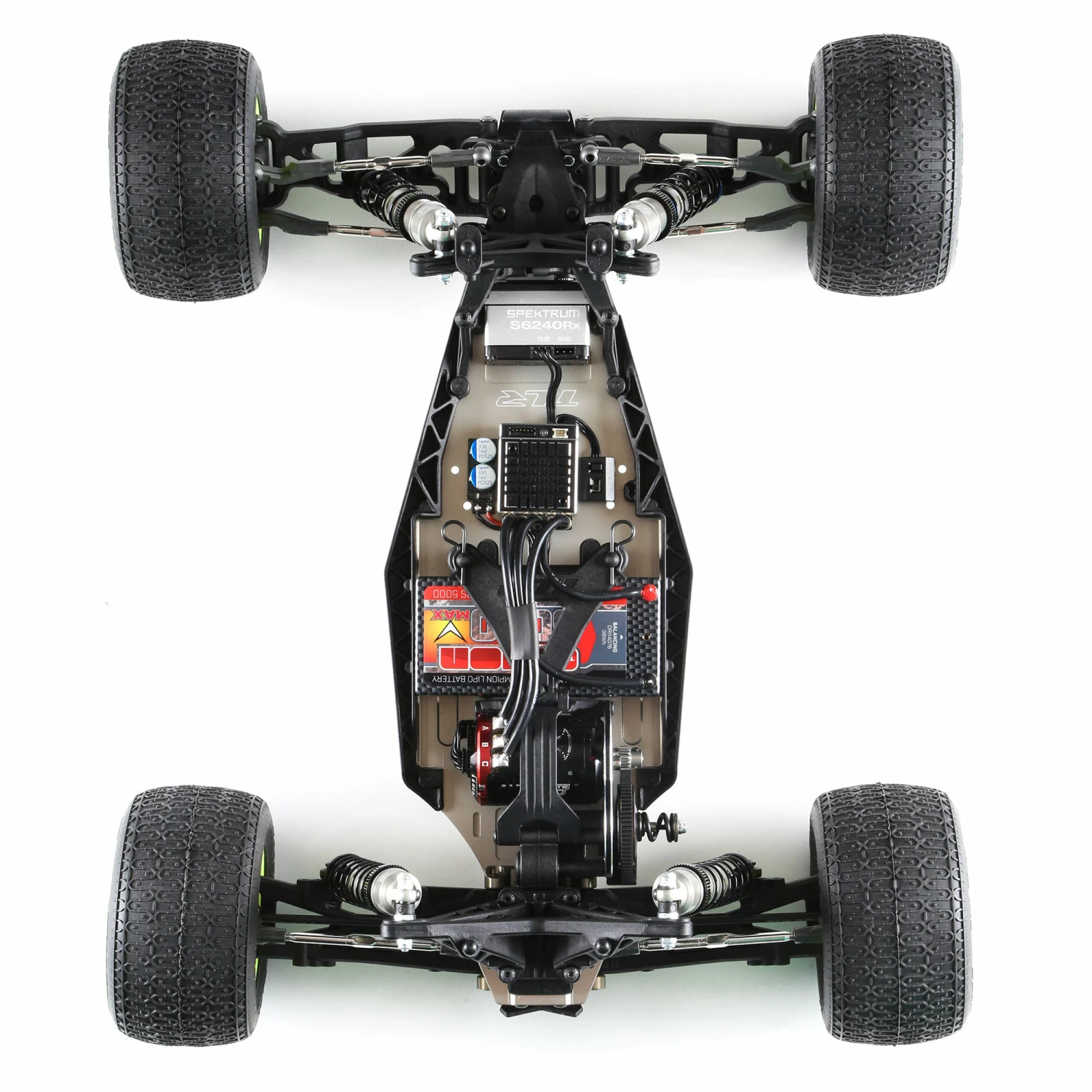

- Chassis: 2.5mm 7075-T6 Aluminum
- Completion Level: Kit
- Differential: Ball Differential
- Drivetrain: 2WD
- Front Track: 12.9 in (328mm)
- Power Type: Electric
- Gear Pitch: 0.06 Module
- Internal Gear Ratio: 2.43:1
- Motor Size: 540
- Motor Type: Brushless
- Product Height: 5.65 in (143mm)
- Product Length: 13.9 in (354mm) without Body/Wheels
- Product Width: 12.7 in (322mm)
- Rear Track: 12.9 in (328mm)
- Receiver: Sold Separately
- Scale: 1/10
- Servos: Sold Separately

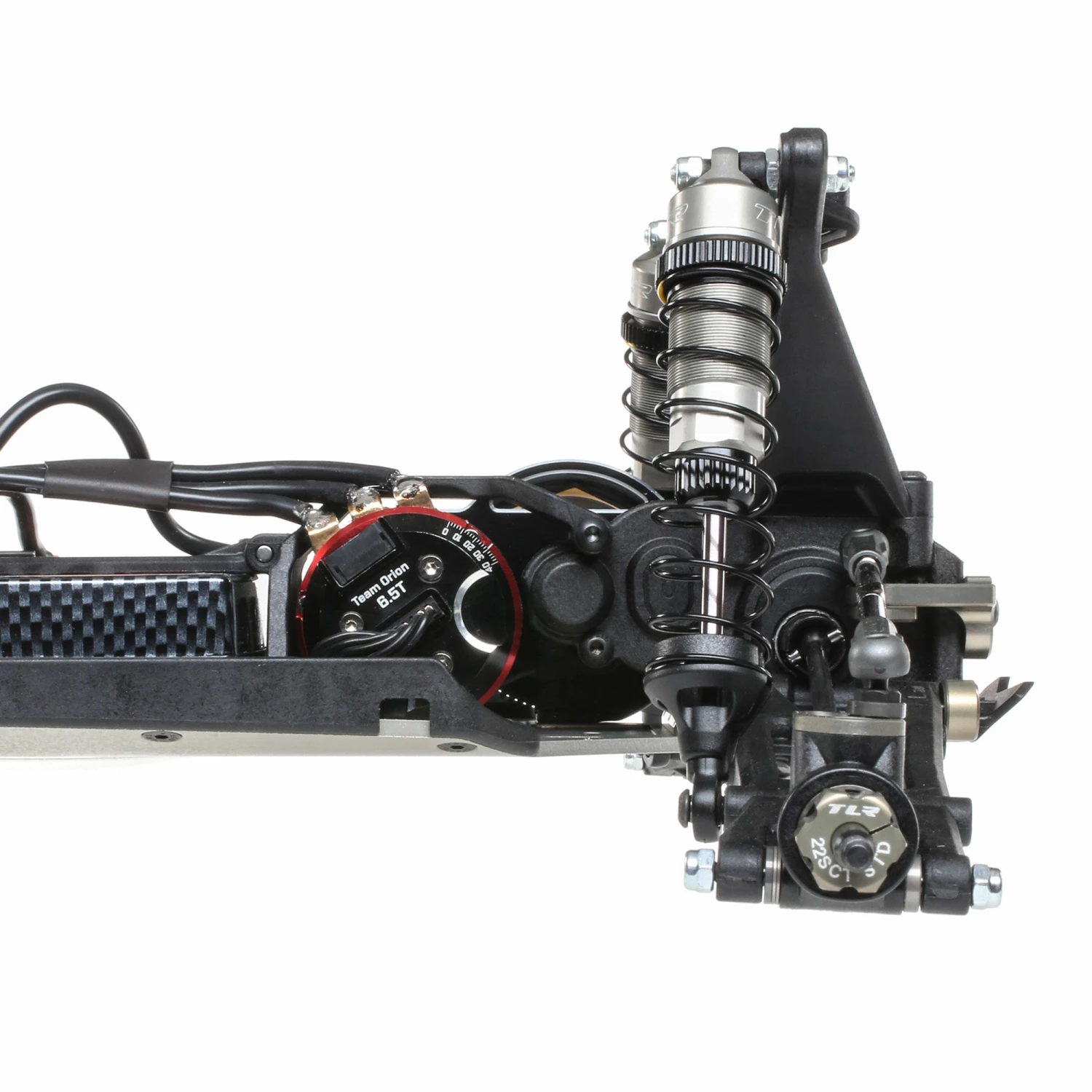

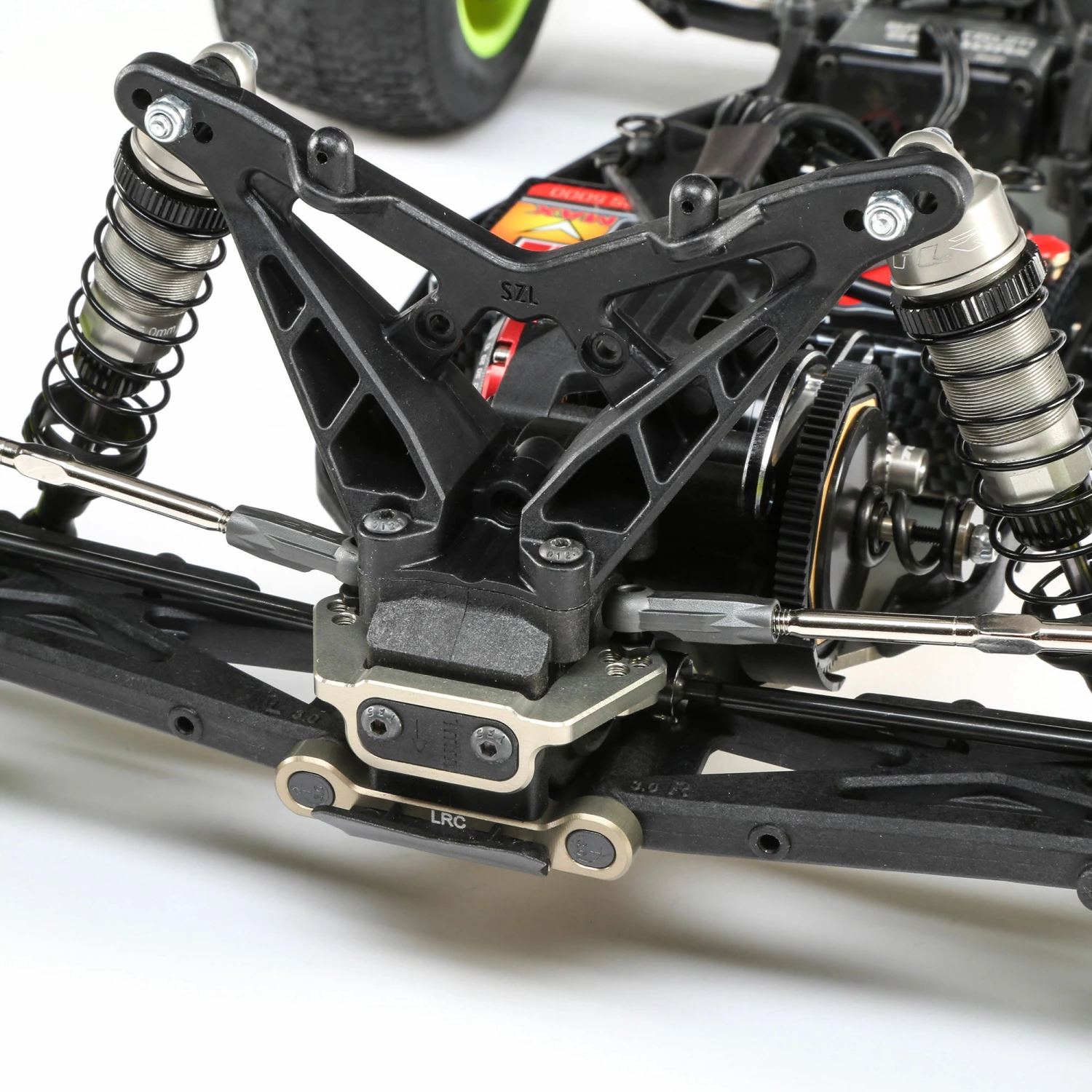

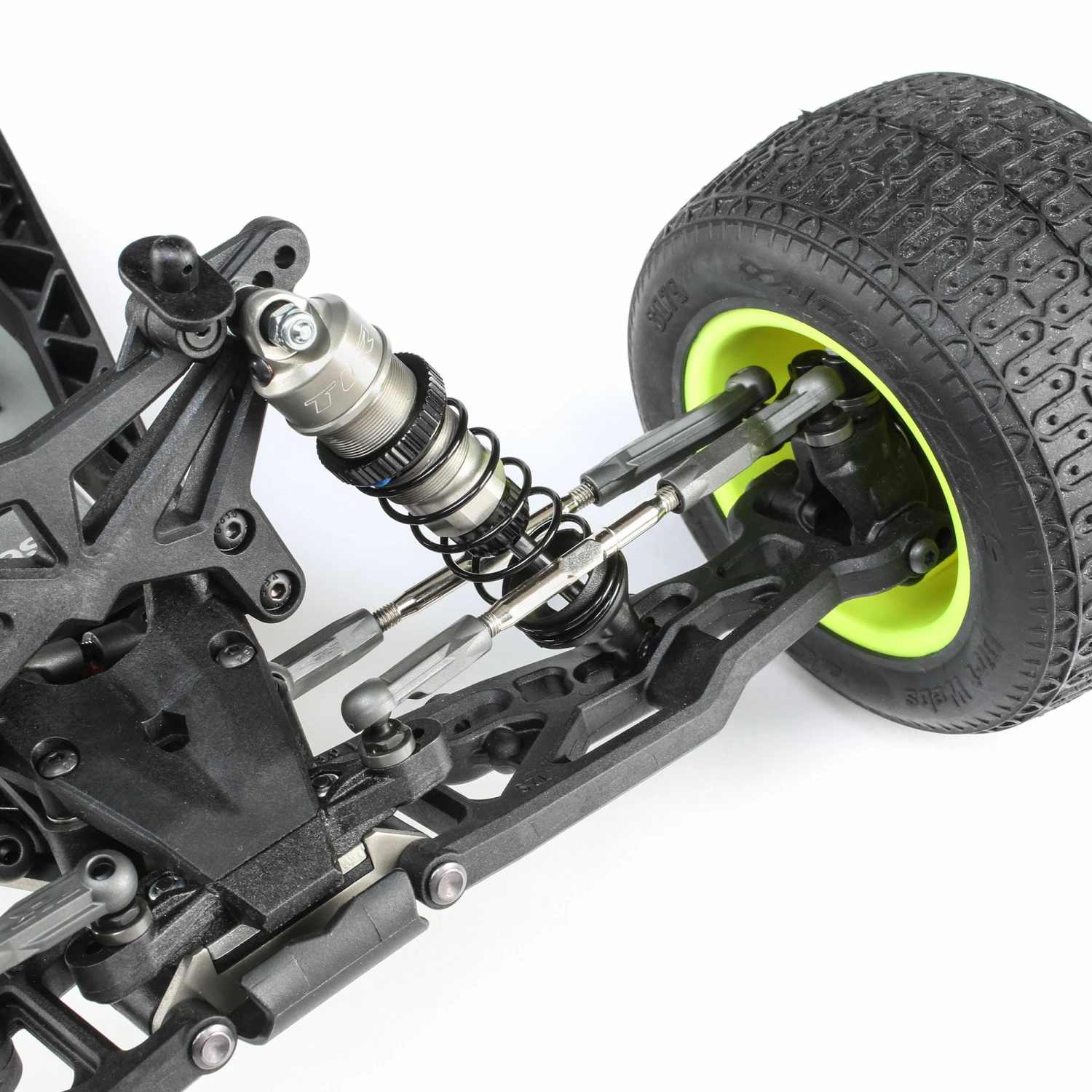

- Shock Type: 12mm Big Bore, Oil Filled
- Speed Control: Sold Separately

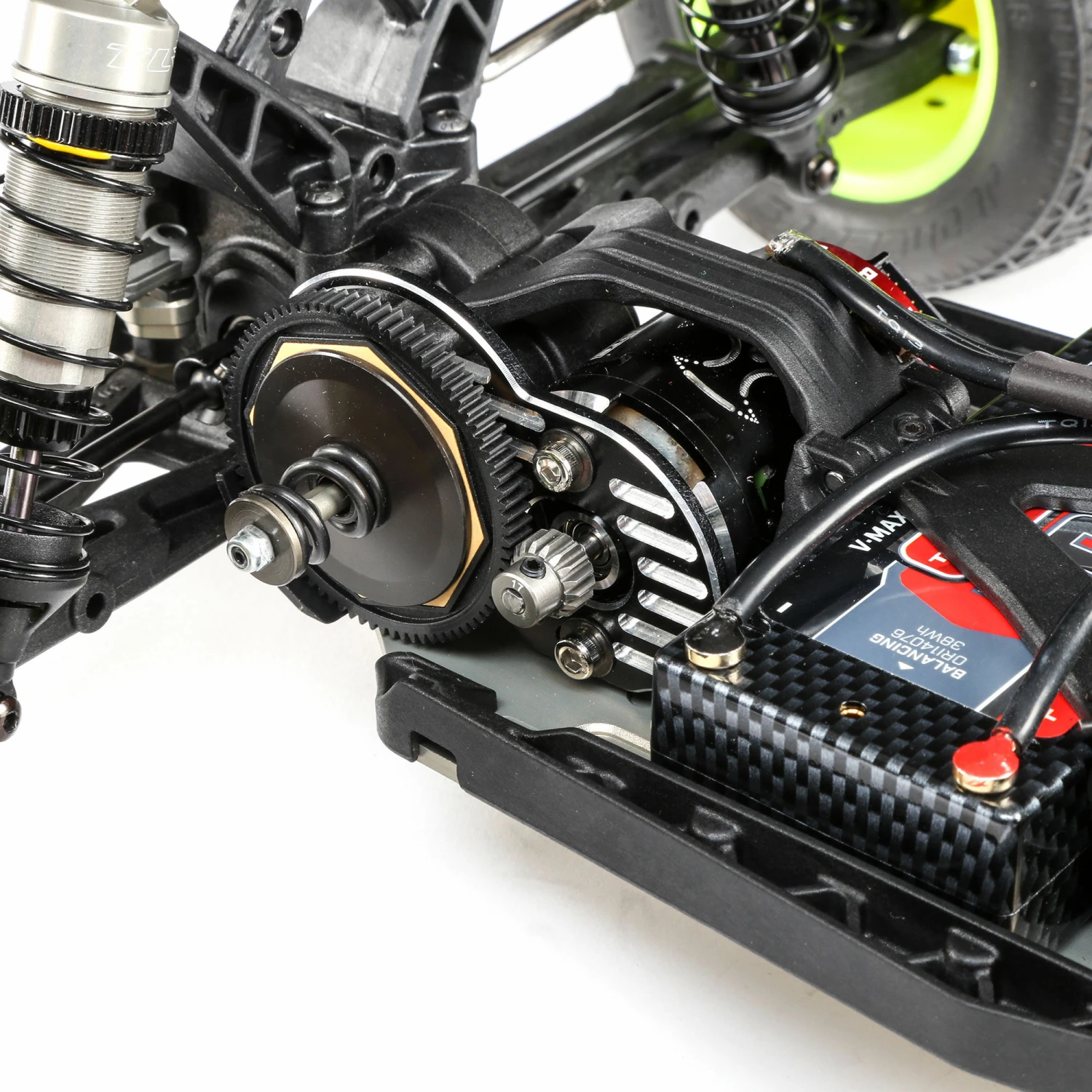

- Spur Gear: 82T

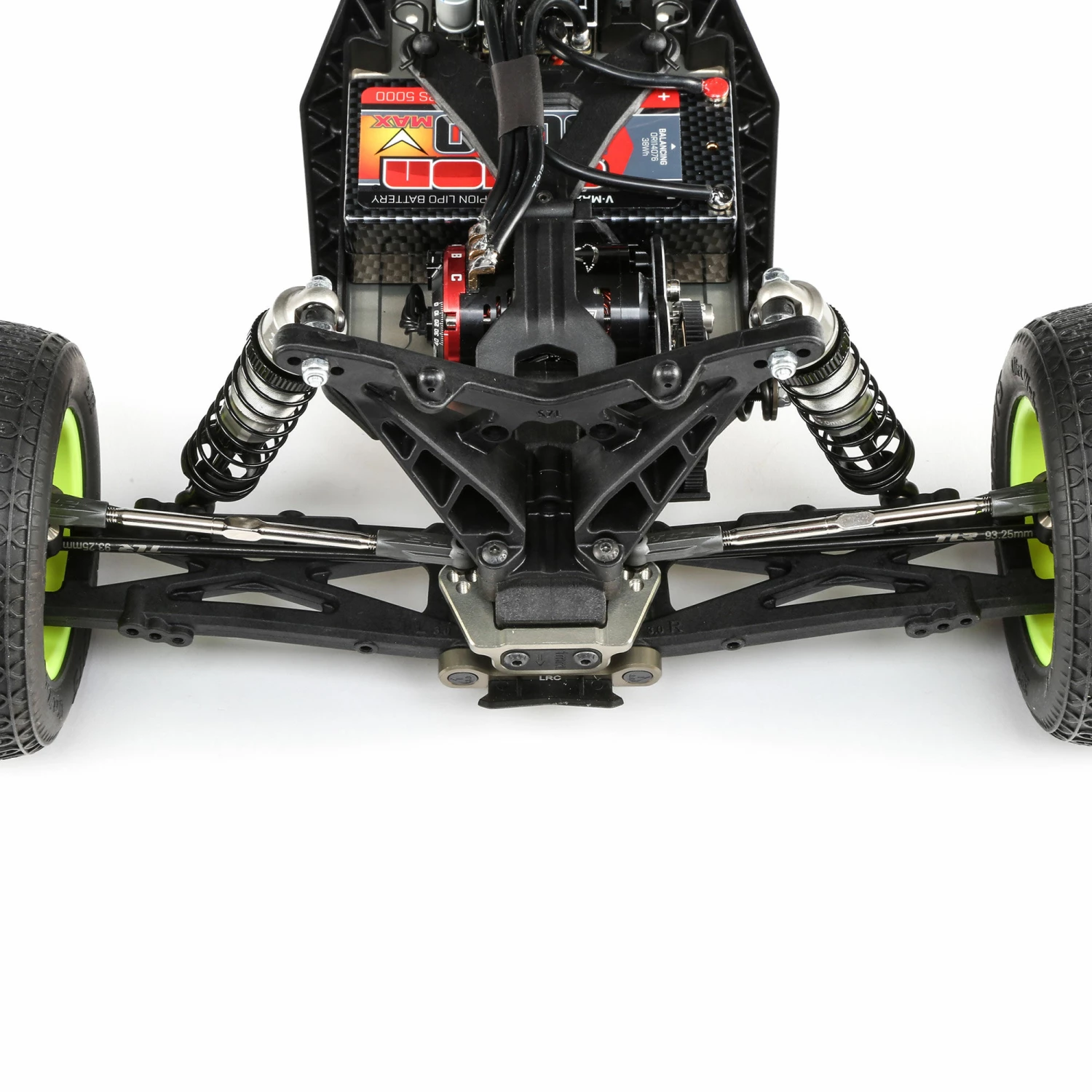

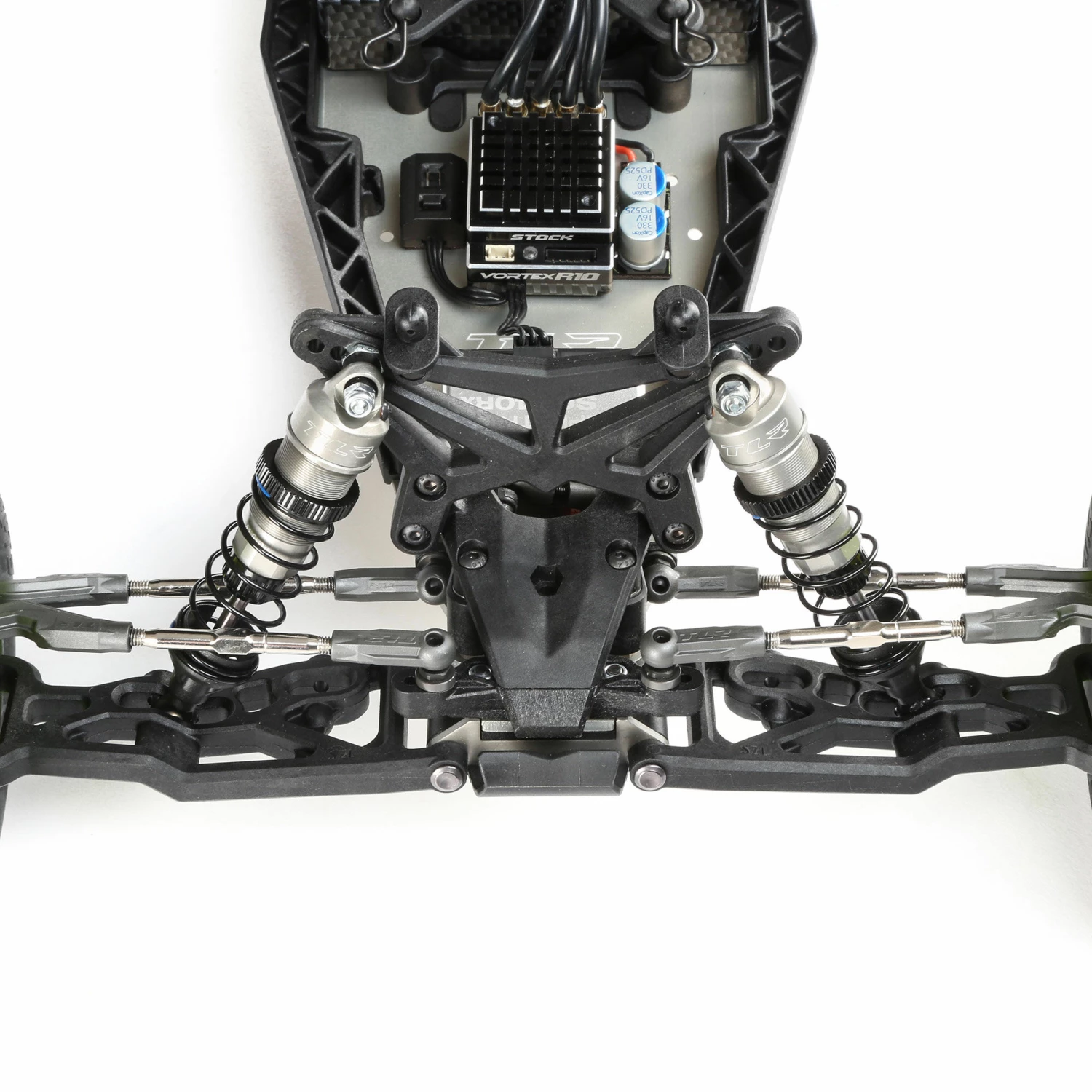

- Suspension: Lower A-Arm, Upper Adjustable Link
- Vehicle Type: Stadium Truck
- Wheelbase: 11.4 in (290.5mm)
- Wheel Type: 22T Dish
- Wheel Width: 1.90 in (48mm)
