Product Details

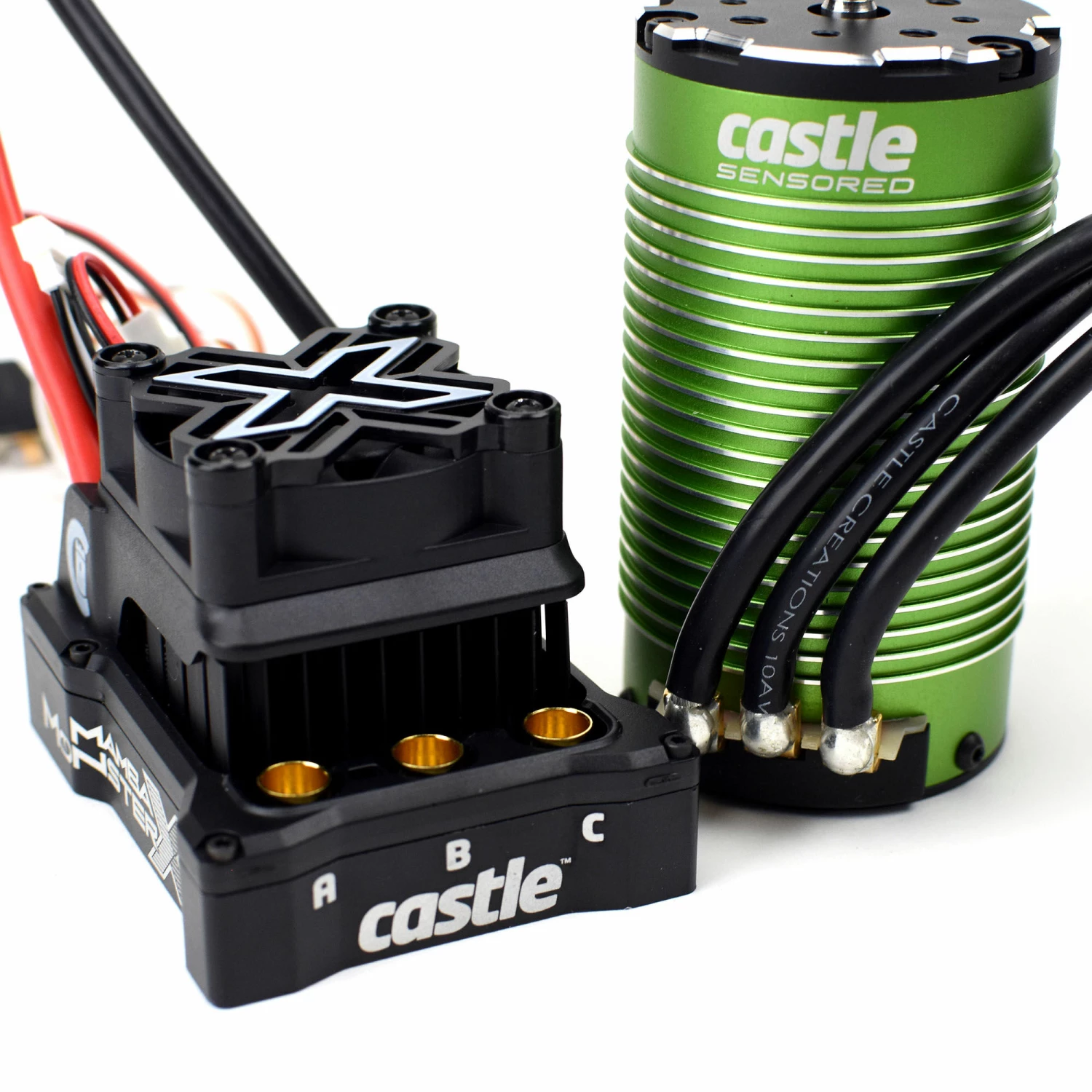

MORE POWER – COOLER TEMPS – LONGER RUNSTake your scale build or upgrade to the next level with Castleβs legendary brushless power. The MAMBA MONSTER X 8S, 33.6V ESC W/1717-1260KV SENSORED COMBO is a perfect upgrade for heavier 1:8th vehicles and lighter 1:6th vehicles weighing up to 20 lbs. and running up to 8S LiPo.
Key Features
- Input Voltage Range 2S-8S LiPo
- Sensorless, Sensored and SmartSenseβ’ Running Modes
- CRYO-DRIVEβ’ Technology minimizes the amount of time the ESCβs electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
- 4-POLE 12-SLOT sensored motor design that boasts exceptional efficiency and produces less heat
- Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations’ 1-year warranty
In The Box
- (1) Mamba Monster X 8S ESC
- (1) 4-POLE Sensored 1717-1260KV Motor
- (1) Castle Sensor Harness Adapter
- (1) 200mm Sensor Wire
- (1) Mamba Decals
- (1) Coupon for free Castle Link USB
- (1) ESC Quick Start Guide
- (1) Motor Quick Start Guide
Product Specifications
- Adjustable Timing: Yes
- Application: 1/6 scale vehicles weighing up to 20lbs runnning up to 8S LiPo, Upgrade for heavier 1/8 scale, and lighter 1/6 scale vehicles
- Auto Cutoff: Yes
- Battery Input Lead: 10AWG
- BEC: Yes
- BEC Continous Current: 8A
- BEC Voltage: 5.5, 6.0, 7.5, or 8.0 (default 5.5V)
- Brakes: Proportional
- Connector Type: 6.5mm Bullet
- Drive Type: Forward/Brake/Reverse
- Input Voltage: 2-8S
- Motor Design: Inrunner
- Motor Size: Length: 3.35″ (85.1mm), Diameter 1.87″ (47.6mm)
- Motor Type: Brushless
- Number of Poles: 4
- Overload Protection: Yes
- Product Weight: ESC, 5.75oz (163g) without battery connector, Motor 21.08oz (597.6g) with wires
- Programmable: Yes
- Reverse: Yes
- RPM/Volt (Kv): 1260Kv
- Shaft Diameter: 0.196″ (5 mm)
- Voltage: 7.4 – 33.6V
- Water-Resistant: Yes
- Wire Gauge: 10 AWG
