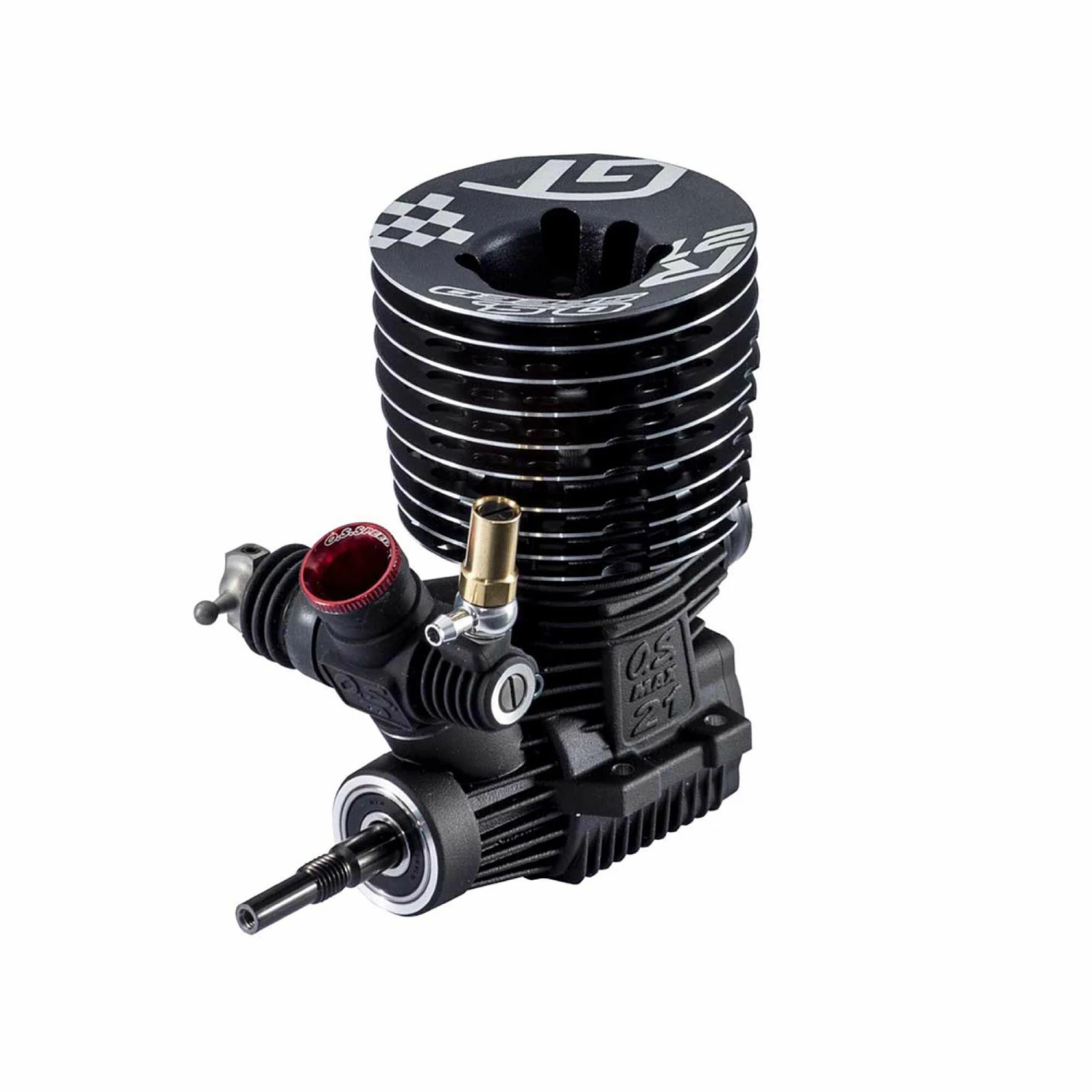

Product Details

Product Specifications

• Manufacturer #: 1CC00
• Bore: 0.633″ (16.08mm)
• Crankshaft Threads: UNF 1/4-28
• Crankshaft Type: SG
• Cylinders: Single
• Cylinder Type: Five Scavenging Ports, three Exhaust Ports
• Displacement: 0.213 cu in (3.49cc)
• Engine (Only) Weight: 13.2oz (369g)
• Power Type: Glow
• Oil Type & Content: 12-16% Synthetic Oil Mixture in Fuel
• Plug Type: RP6 Turbo Type, Medium Heat Range
• Product Height: Bottom/Mounting Tabs to top of Cylinder Head 3.4″ (86.5mm)
• Product Length: Backplate to Front Bearing, 2.5″ (64.6mm)
• Product Width: At Mounting Tabs 1.8″ (45mm),
• RPM Range: 4,000 – 42,000
• Stroke: 0.677″ (17.20mm)
